STGWA60V60DF, STGW60V60DF-1, 650V 60A IGBT

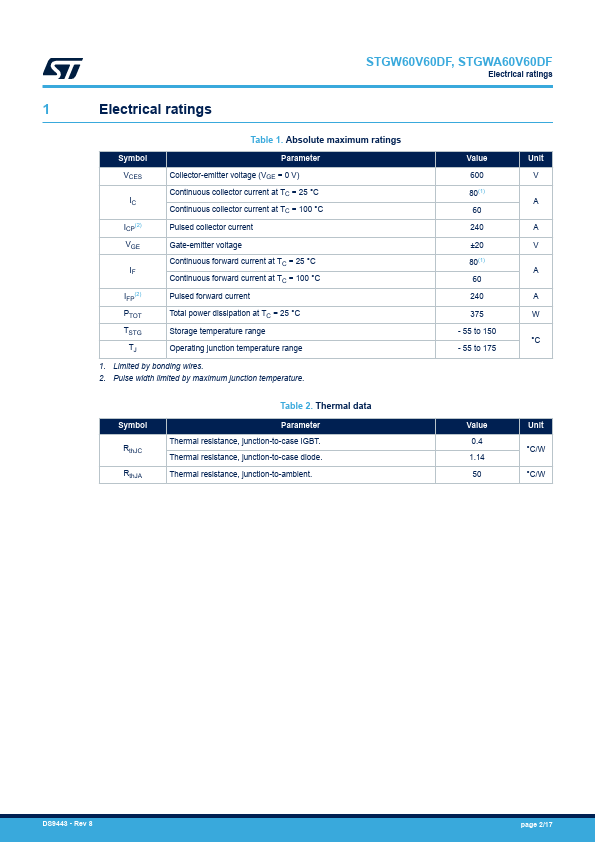

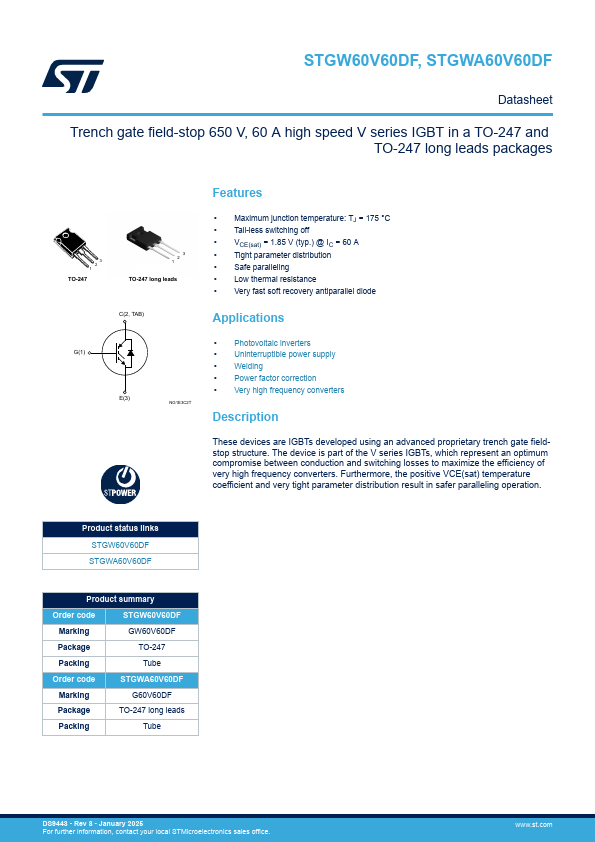

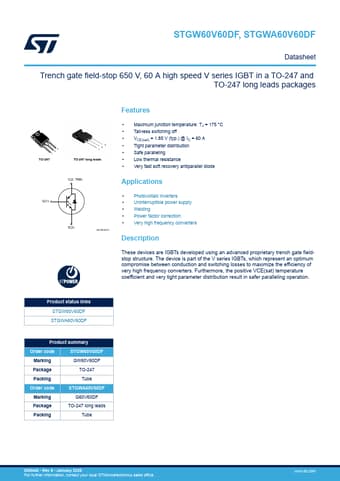

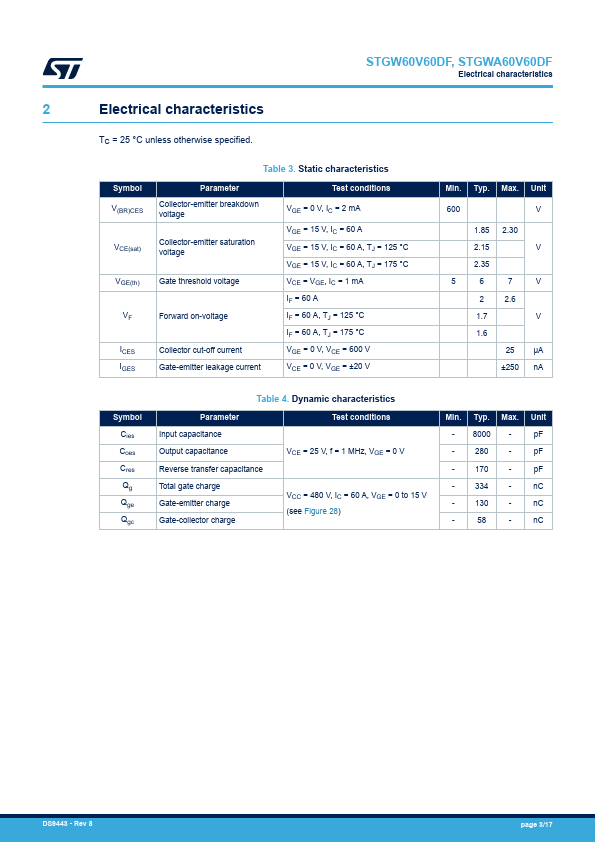

STGW60V60DF, STGWA60V60DF Datasheet Trench gate field-stop 650 V, 60 A high speed V series IGBT in a TO-247 and TO-247 long leads packages 3 2 1 TO-2.
These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure.

STGW60V60DF-1-STMicroelectronics.pdf

STGWA60V60DF Datasheet Preview — This datasheet PDF includes multiple part numbers: STGWA60V60DF, STGW60V60DF-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STGWA60V60DF, STGW60V60DF-1

Manufacturer:

STMicroelectronics ↗

File Size:

526.07 KB

Description:

650V 60A IGBT

Note:

This datasheet PDF includes multiple part numbers: STGWA60V60DF, STGW60V60DF-1.
Please refer to the document for exact specifications by model.

Features

* Maximum junction temperature: TJ = 175 °C
* Tail-less switching off
* VCE(sat) = 1.85 V (typ. ) @ IC = 60 A
* Tight parameter distribution
* Safe paralleling
* Low thermal resistance

Applications

* Photovoltaic inverters
* Uninterruptible power supply
* Welding
* Power factor correction
