STGWA40HP65FB2 high-speed HB2 series IGBT

STMicroelectronics

STGWA40HP65FB2 Description

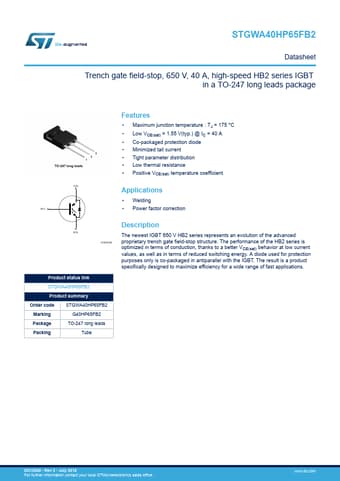

STGWA40HP65FB2 Datasheet Trench gate field-stop, 650 V, 40 A, high-speed HB2 series IGBT in a TO-247 long leads package G(1) C(2) .
The newest IGBT 650 V HB2 series represents an evolution of the advanced proprietary trench gate field-stop structure.

STGWA40HP65FB2 Features

* Maximum junction temperature : TJ = 175 °C
* Low VCE(sat) = 1.55 V(typ. ) @ IC = 40 A
* Co-packaged protection diode
* Minimized tail current
* Tight parameter distribution
* Low thermal resistance
* Positive VCE(sat) temperature coefficient A

STGWA40HP65FB2 Applications

* Welding

📥 Download Datasheet

STGWA40HP65FB2 Datasheet Preview — Preview of STGWA40HP65FB2 PDF

Datasheet Details

Part number: STGWA40HP65FB2
Manufacturer: STMicroelectronics ↗
File Size: 307.68 KB
Datasheet: STGWA40HP65FB2-STMicroelectronics.pdf
Description: high-speed HB2 series IGBT
