STGWA40H120DF2, STGW40H120DF2 Datasheet - STMicroelectronics

STGWA40H120DF2, STGW40H120DF2, 1200V 40A high speed IGBT

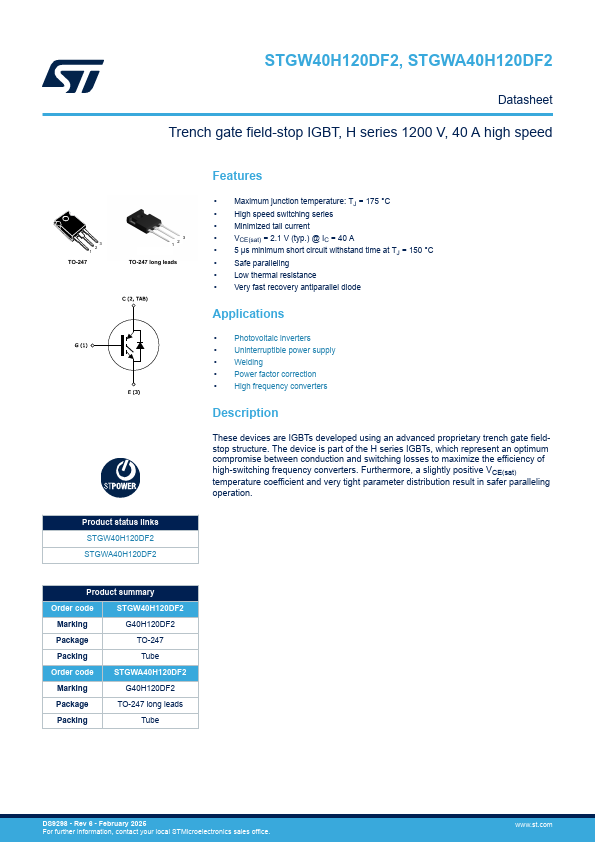

STGW40H120DF2, STGWA40H120DF2 Datasheet Trench gate field-stop IGBT, H series 1200 V, 40 A high speed 3 2 1 TO-247 3 12 TO-247 long leads Product s.
These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure.

STGW40H120DF2-STMicroelectronics.pdf

STGWA40H120DF2 Datasheet Preview — This datasheet PDF includes multiple part numbers: STGWA40H120DF2, STGW40H120DF2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STGWA40H120DF2, STGW40H120DF2

Manufacturer:

STMicroelectronics ↗

File Size:

660.69 KB

Description:

1200V 40A high speed IGBT

Note:

This datasheet PDF includes multiple part numbers: STGWA40H120DF2, STGW40H120DF2.
Please refer to the document for exact specifications by model.

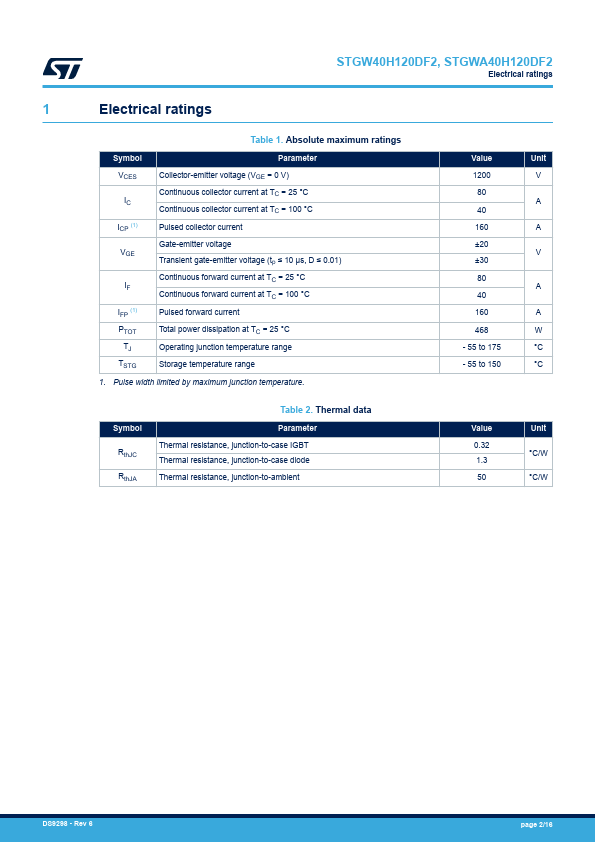

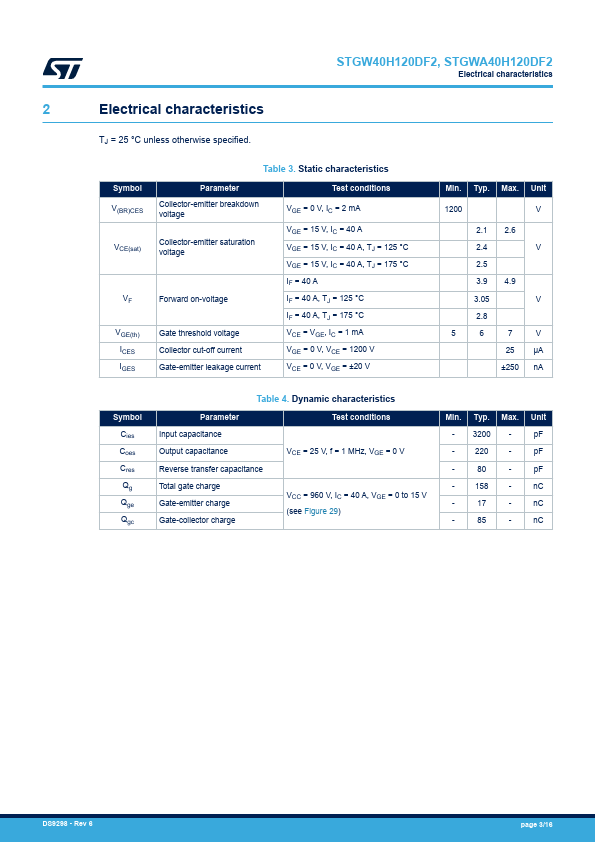

Features

* Maximum junction temperature: TJ = 175 °C
* High speed switching series
* Minimized tail current
* VCE(sat) = 2.1 V (typ. ) @ IC = 40 A
* 5 μs minimum short circuit withstand time at TJ = 150 °C
* Safe paralleling
* Low thermal resistance

Applications

* Photovoltaic inverters
* Uninterruptible power supply
* Welding
* Power factor correction
