STGW40NC60KD 40A - 600V - short circuit rugged IGBT

STMicroelectronics

STGW40NC60KD Description

STGW40NC60KD 600 V, 40 A short-circuit rugged IGBT Datasheet - production data .
This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

STGW40NC60KD Features

* Low on-voltage drop (VCE(sat))
* Low Cres / Cies ratio (no cross conduction susceptibility)
* Short-circuit withstand time 10 µs 2 1 3

STGW40NC60KD Applications

* High frequency inverters

📥 Download Datasheet

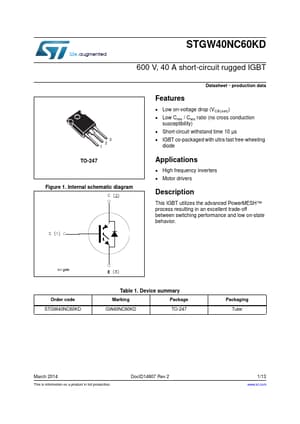

STGW40NC60KD Datasheet Preview — Preview of STGW40NC60KD PDF

Datasheet Details

Part number: STGW40NC60KD
Manufacturer: STMicroelectronics ↗
File Size: 474.26 KB
Datasheet: STGW40NC60KD-STMicroelectronics.pdf
Description: 40A - 600V - short circuit rugged IGBT
