STGP7NC60H, STGD7NC60H - IGBT

STMicroelectronics

The STGP7NC60H by STMicroelectronics is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

STGP7NC60H IGBT by STMicroelectronics - Datasheet Preview — Official preview page of the **STGP7NC60H** IGBT datasheet (STMicroelectronics).

Datasheet Details

Part number	STGP7NC60H, STGD7NC60H
Manufacturer	STMicroelectronics
File Size	654.97 KB
Description	IGBT
Datasheet	STGD7NC60H_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STGP7NC60H, STGD7NC60H. Please refer to the document for exact specifications by model.

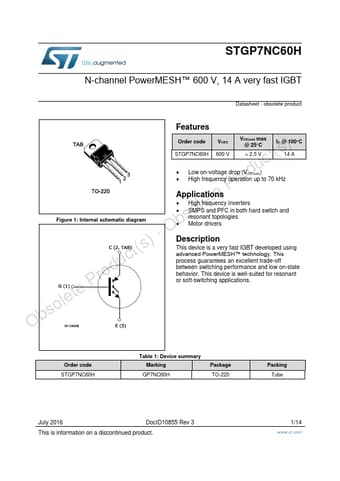

Additional preview pages of the STGP7NC60H datasheet.

STGP7NC60H Product details

Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding performances.

Features

TYPE STGP7NC60H STGD7NC60HT4 s s s s www. DataSheet4U. com Figure 1: Package IC @100°C 14 A 14 A 3 1 VCES 600 V 600 V VCE(sat) (Max) @25°C < 2.5 V < 2.5 V s LOWER ON-.
