STGP40V60F, STGB40V60F IGBT

STMicroelectronics

STGP40V60F Description

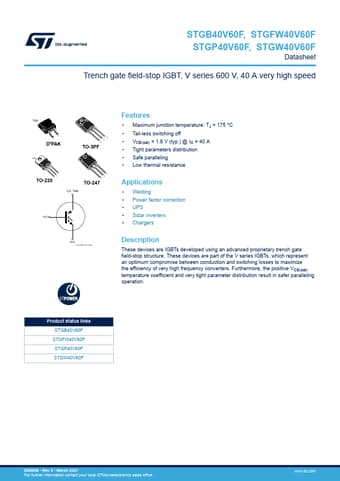

STGB40V60F, STGFW40V60F STGP40V60F, STGW40V60F Datasheet Trench gate field-stop IGBT, V series 600 V, 40 A very high speed TAB 3 1 D2PAK TAB 23 1 TO.
These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure.

STGP40V60F Features

* Maximum junction temperature: TJ = 175 °C
* Tail-less switching off
* VCE(sat) = 1.8 V (typ. ) @ IC = 40 A
* Tight parameters distribution
* Safe paralleling

STGP40V60F Applications

* Welding
* Power factor correction
* UPS
* Solar inverters

📥 Download Datasheet

STGP40V60F Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP40V60F, STGB40V60F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: STGP40V60F, STGB40V60F
Manufacturer: STMicroelectronics ↗
File Size: 671.80 KB
Datasheet: STGB40V60F-STMicroelectronics.pdf
Description: IGBT
Note: This datasheet PDF includes multiple part numbers: STGP40V60F, STGB40V60F.
Please refer to the document for exact specifications by model.
