STGB19NC60KDT4 Description

STGB19NC60KDT4, STGF19NC60KD, STGP19NC60KD 20 A, 600 V short-circuit rugged IGBT Datasheet - production data TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-.
These devices are very fast IGBTs developed using advanced PowerMESH™ technology.

STGB19NC60KDT4 Features

* Low on voltage drop (VCE(sat))
* Low CRES / CIES ratio (no cross-conduction susceptibility)
* Short-circuit withstand time 10 μs

STGB19NC60KDT4 Applications

* High frequency inverters

📥 Download Datasheet

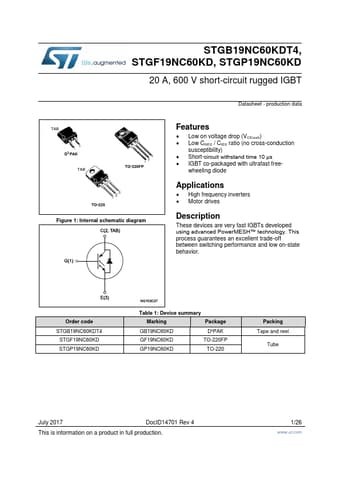

STGB19NC60KDT4 Datasheet Preview — Preview of STGB19NC60KDT4 PDF

Datasheet Details

Part number: STGB19NC60KDT4
Manufacturer: STMicroelectronics ↗
File Size: 1.04 MB
Datasheet: STGB19NC60KDT4-STMicroelectronics.pdf
Description: 600V short-circuit rugged IGBT
