STGAP1AS Automotive galvanically isolated advanced single gate driver

STGAP1AS Description

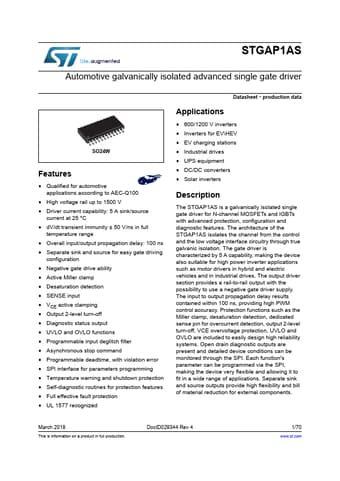

STGAP1AS Automotive galvanically isolated advanced single gate driver SO24W .
The STGAP1AS is a galvanically isolated single gate driver for N-channel MOSFETs and IGBTs with advanced protection, configuration and diagnostic feat.

STGAP1AS Applications

* according to AEC-Q100
* High voltage rail up to 1500 V
* Driver current capability: 5 A sink/source current at 25 °C
* dV/dt transient immunity ± 50 V/ns in full temperature range
* Overall input/output propagation delay: 100 ns
* Separate sink and source for easy gate driving co
