STGAP2HS Galvanically isolated 4A single gate driver

STGAP2HS Description

STGAP2HS Datasheet Galvanically isolated 4 A single gate driver Product status link STGAP2HS Product label .
The STGAP2HS is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circ.

STGAP2HS Features

* High voltage rail up to 1200 V
* Driver current capability: 4 A sink/source @25°C
* dV/dt transient immunity ±100 V/ns in full temperature range
* Overall input-output propagation delay: 75 ns
* Separate sink and source option for easy gate driving configura

STGAP2HS Applications

* such as power conversion and motor driver inverters in industrial applications. The device is available in two different configurations. The configuration with separated output pins allows to independently optimize turn-on and turn-off by using dedicated gate resistors. The configuration featuring s

📥 Download Datasheet

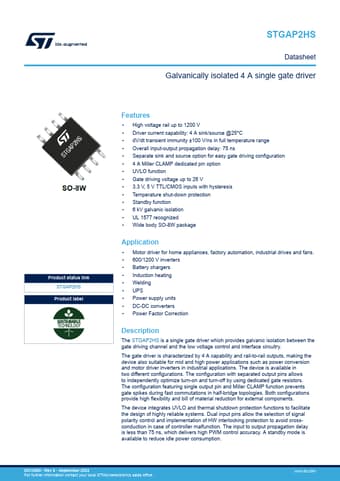

Preview of STGAP2HS PDF
datasheet Preview Page 2 datasheet Preview Page 3
