STFI9N60M2, STF9N60M2 - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

STFI9N60M2 Datasheet Preview — This datasheet PDF includes multiple part numbers: STFI9N60M2, STF9N60M2. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STFI9N60M2, STF9N60M2
Manufacturer	STMicroelectronics ↗
File Size	419.43 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STF9N60M2-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STFI9N60M2, STF9N60M2. Please refer to the document for exact specifications by model.

STFI9N60M2 Product details

Description

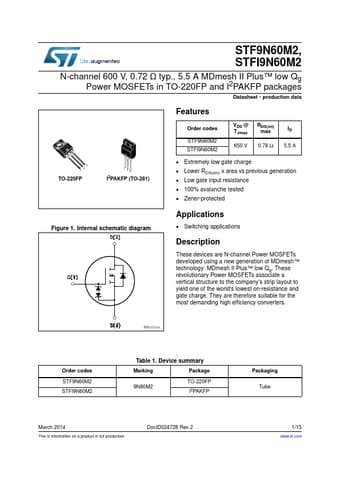

These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg.

Features

Order codes STF9N60M2 STFI9N60M2 VDS @ TJmax RDS(on) max ID 650 V 0.78 Ω 5.5 A.
Extremely low gate charge.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected Figure 1. Internal schematic diagram.
