STF30N65M5, N-CHANNEL POWER MOSFET

STB30N65M5, STF30N65M5, STI30N65M5 STP30N65M5, STW30N65M5 N-channel 650 V, 0.125 Ω, 22 A, MDmesh™ V Power MOSFET D²PAK, TO-220FP, I²PAK, TO-220, TO-24.
' These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMi.

STF30N65M5-STMicroelectronics.pdf

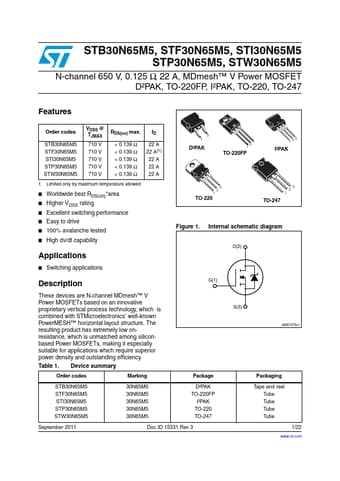

STF30N65M5 Datasheet Preview — Preview of STF30N65M5 PDF

Datasheet Details

Part number:

STF30N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.21 MB

Description:

N-CHANNEL POWER MOSFET

Features

* Order codes STB30N65M5 STF30N65M5 STI30N65M5 STP30N65M5 STW30N65M5 VDSS @ TJMAX 710 V 710 V 710 V 710 V 710 V RDS(on) max. ID < 0.139 Ω < 0.139 Ω < 0.139 Ω < 0.139 Ω < 0.139 Ω 22 A 22 A(1) 22 A 22 A 22 A 1. Limited only by maximum temperature allowed
* Worldwide best RDS(on)
* area

Applications

* 3 1 D²PAK 3 2 1 TO-220FP 123 I²PAK 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram $
