STF38N65M5, N-Channel MOSFET

isc N-Channel MOSFET Transistor STF38N65M5 .

STF38N65M5-INCHANGE.pdf

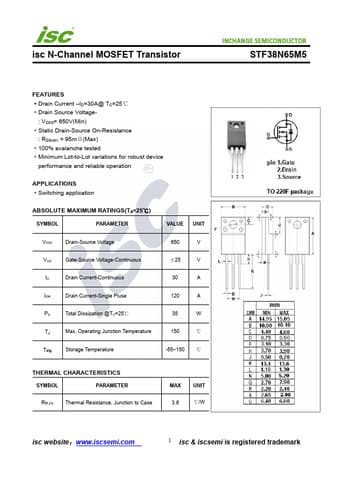

STF38N65M5 Datasheet Preview — Preview of STF38N65M5 PDF

Datasheet Details

Part number:

STF38N65M5

Manufacturer:

INCHANGE

File Size:

261.80 KB

Description:

N-Channel MOSFET

Features

* Drain Current
* ID=30A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 95mΩ(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 30 A IDM Drain Current-Single Pluse 120 A PD Total Dissipation @TC=25℃ 35 W TJ Max. O
