STF2NK60Z, N-channel Power MOSFET

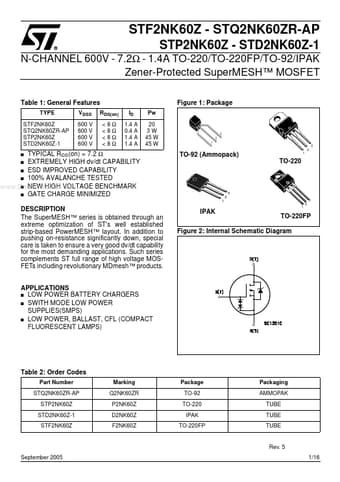

STF2NK60Z - STQ2NK60ZR-AP STP2NK60Z - STD2NK60Z-1 N-CHANNEL 600V - 7.2Ω - 1.4A TO-220/TO-220FP/TO-92/IPAK Zener-Protected SuperMESH™ MOSFET Table 1: G.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STF2NK60Z_STMicroelectronics.pdf

STF2NK60Z Datasheet Preview — Preview of STF2NK60Z PDF

Datasheet Details

Part number:

STF2NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

537.76 KB

Description:

N-channel Power MOSFET

Features

* TYPE STF2NK60Z STQ2NK60ZR-AP STP2NK60Z STD2NK60Z-1 s s Figure 1: Package ID 1.4 0.4 1.4 1.4 A A A A Pw 20 3W 45 W 45 W 8Ω 8Ω 8Ω 8Ω VDSS 600 V 600 V 600 V 600 V RDS(on) < < < < 3 TYPICAL RDS(on) = 7.2 Ω EXTREMELY HIGH dv/dt CAPABILITY s ESD IMPROVED CAPABILITY s 100% AVALANCHE TESTED s NEW HIGH

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. TO-92 (Ammopack) TO-220 1 2 3 2 1 1 3 2 IPAK TO-220FP Figure 2: Internal Schematic Diagram APPLICATIONS s LOW POWER BATTERY CHARGERS s SWITH MODE LOW POWER SUPPLIES(SMPS) s LOW POWER, BAL
