STF2N62K3 - N-channel Power MOSFET

STF2N62K3 Description

STD2N62K3, STF2N62K3, STU2N62K3 Datasheet N-channel 620 V, 2.9 Ω typ., 2.2 A MDmesh™ K3 Power MOSFETs in DPAK, TO-220FP and IPAK packages D(2, TAB) G.
These MDmesh™ K3 Power MOSFETs are the result of improvements applied to STMicroelectronics’ MDmesh™ technology, combined with a new optimized vertica.

STF2N62K3 Features

* Order code VDS RDS(on)max. STD2N62K3 STF2N62K3 620 V 3.6 Ω STU2N62K3
* 100% avalanche tested
* Extremely high dv/dt capability
* Very low intrinsic capacitance
* Improved diode reverse recovery characteristics
* Zener-protected ID 2.2 A Package DPAK

📥 Download Datasheet

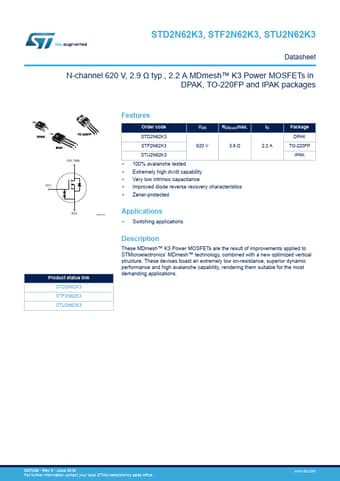

Preview of STF2N62K3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
