STF19NM65N - Power MOSFET

STMicroelectronics

📥 Download Datasheet

STF19NM65N Datasheet Preview — Preview of STF19NM65N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STF19NM65N
Manufacturer	STMicroelectronics ↗
File Size	563.71 KB
Description	Power MOSFET
Datasheet	STF19NM65N_STMicroelectronics.pdf

STF19NM65N Product details

Description

This series of devices implements the second generation of MDmesh™ Technology.

Features

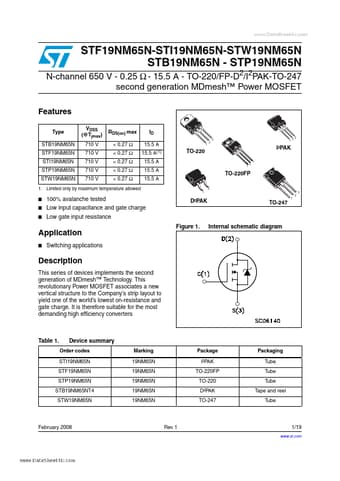

Type STB19NM65N STF19NM65N STI19NM65N STP19NM65N STW19NM65N VDSS (@Tjmax) 710 V 710 V 710 V 710 V 710 V RDS(on) max < 0.27 Ω < 0.27 Ω < 0.27 Ω < 0.27 Ω < 0.27 Ω ID 3 15.5 A 15.5 A(1) 15.5 A 15.5 A 15.5 A 1 2 3 12 TO-220 3 1 2 I²PAK TO-220FP 3 1 2 3 1. Limited only by maximum temperature allowed.
100% avalanche tested Low input capacitance and gate charge Low gate input resistance D²PAK 1 TO-247 Figure 1. Internal schematic diagram.
