STF19NF20 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

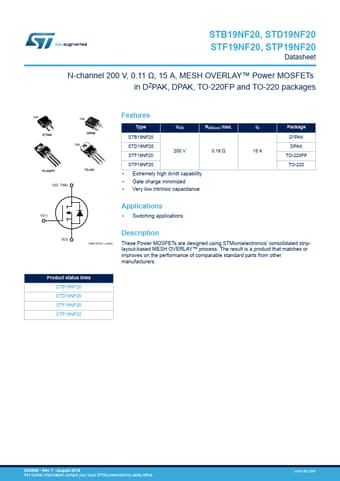

STF19NF20 Datasheet Preview — Preview of STF19NF20 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STF19NF20
Manufacturer	STMicroelectronics ↗
File Size	773.93 KB
Description	N-channel Power MOSFET
Datasheet	STF19NF20_STMicroelectronics.pdf

STF19NF20 Product details

Description

This Power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process.

Features

Type STB19NF20 STD19NF20 STF19NF20 STP19NF20 VDS RDS(on) max. 200 V 200 V 200 V 200 V 0.16 Ω 0.16 Ω 0.16 Ω 0.16 Ω ID 15 A 15 A 15 A 15 A PTOT 90 W 90 W 25 W 90 W 3 2 1 TO-220FP 3 2 1 TO-220 Figure 1. Internal schematic diagram '7$%.
Extremely high dv/dt capability.
Gate charge minimized.
Very low intrinsic capacitances.
