STDRIVEG600 High voltage half-bridge gate driver

STDRIVEG600 Description

STDRIVEG600 Datasheet High voltage half-bridge gate driver for GaN transistors SO-16 Product status link STDRIVEG600 Product label .
The STDRIVEG600 is a single chip half-bridge gate driver for Enhancement mode GaN FETs or N-channel power MOSFET.

STDRIVEG600 Features

* dV/dt immunity ±200 V/ns
* Driver current capability:
* 1.3/2.4 A source/sink typ @ 25 °C, 6 V
* 5.5/6 A source/sink typ @ 25 °C, 15 V
* Separated turn on and turn off gate driver pins
* 45 ns propagation delay with tight matching
* 3.3 V, 5

STDRIVEG600 Applications

* High-voltage PFC, DC-DC and DC-AC converters
* Switch-mode power supplies
* UPS systems
* Solar power

📥 Download Datasheet

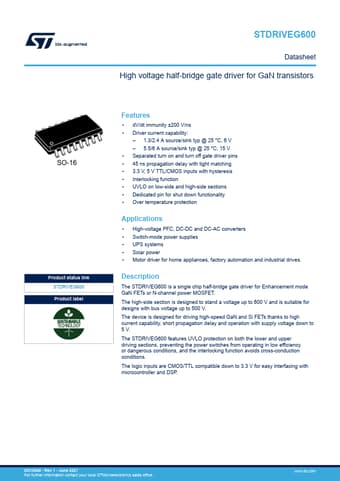

Preview of STDRIVEG600 PDF
datasheet Preview Page 2 datasheet Preview Page 3
