STDRIVE601 Triple half-bridge high-voltage gate driver

STDRIVE601 Description

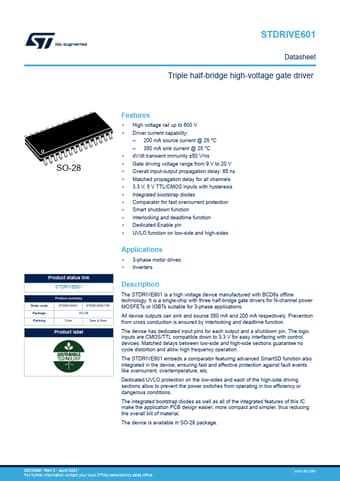

STDRIVE601 Datasheet Triple half-bridge high-voltage gate driver SO-28 .
The STDRIVE601 is a high voltage device manufactured with BCD6s offline technology.

STDRIVE601 Features

* High voltage rail up to 600 V
* Driver current capability:
* 200 mA source current @ 25 °C
* 350 mA sink current @ 25 °C
* dV/dt transient immunity ±50 V/ns
* Gate driving voltage range from 9 V to 20 V
* Overall input-output propagation dela

STDRIVE601 Applications

* 3-phase motor drives
