STC3105 - Battery monitor

Description

The STC3105 battery monitor includes the hardware functions required to implement a lowcost gas gauge for battery monitoring.

The STC3105 uses accurate measurements of the battery voltage to estimate a battery’s state-ofcharge (SOC).

Features

  • 0.5% accuracy battery voltage monitoring.
  • Low battery alarm output with programmable thresholds.
  • Low power: 60 µA in power-saving mode, 2 µA max in standby mode.
  • Ideal for implementation of robust gas gauge systems using open-circuit voltage and coulomb counter methods.
  • Small 3x2 mm package.

📥 Download Datasheet

📁 Similar Datasheet

  • STC31-C - gas sensor (Sensirion)
  • STC3116E - N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STC3232E - High ESD-Protected Low Power 3.3V to 5.5V True RS-232 Transceivers (ETC)
  • STC3265 - NPN Silicon Transistor (AUK)
  • STC344 - NPN Silicon Transistor (AUK)
  • STC345 - NPN Silicon Transistor (AUK)
  • STC345L - NPN Silicon Transistor (AUK)
  • STC3485E - Slew-Rate-Limited True RS-485 Transceivers (ETC)
  • STC3500 - INTEGRATED - STRATUM 3 TIMING SOURCE (Connor-Winfield Corporation)
  • STC352 - NPN Silicon Transistor (AUK)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

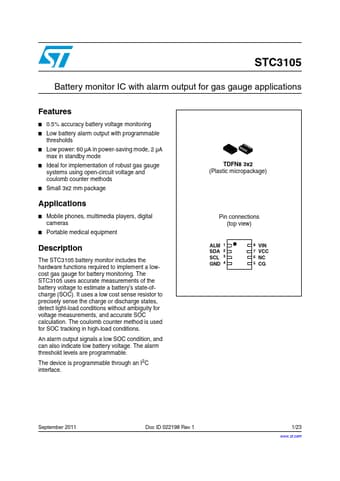

STC3105 Battery monitor IC with alarm output for gas gauge applications Features ■ 0.5% accuracy battery voltage monitoring ■ Low battery alarm output with programmable thresholds ■ Low power: 60 µA in power-saving mode, 2 µA max in standby mode ■ Ideal for implementation of robust gas gauge systems using open-circuit voltage and coulomb counter methods ■ Small 3x2 mm package Applications ■ Mobile phones, multimedia players, digital cameras ■ Portable medical equipment Description The STC3105 battery monitor includes the hardware functions required to implement a lowcost gas gauge for battery monitoring. The STC3105 uses accurate measurements of the battery voltage to estimate a battery’s state-ofcharge (SOC).
