ST72652, ST7265x FULL-SPEED USB 8-BIT MCU

ST72652 Description

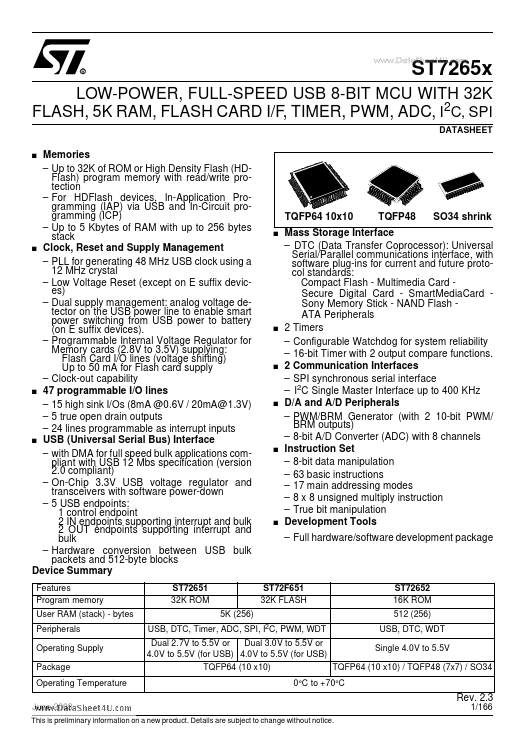

ST7265x www.DataSheet4U.com LOW-POWER, FULL-SPEED USB 8-BIT MCU WITH 32K FLASH, 5K RAM, FLASH CARD I/F, TIMER, PWM, ADC, I2C, SPI DATASHEET s Memorie.
7 3 REGISTER & MEMORY MAP.

ST72652 Features

* Program memory User RAM (stack) - bytes Peripherals Operating Supply Package ST72651 ST72F651 ST72652 32K ROM 32K FLASH 16K ROM 5K (256) 512 (256) USB, DTC, Timer, ADC, SPI, I2C, PWM, WDT USB, DTC, WDT Dual 2.7V to 5.5V or Dual 3.0V to 5.5V or 4.0V to 5.5V (for USB) 4.0V to 5.5V (for USB)

ST72652 Applications

* compliant with USB 12 Mbs specification (version 2.0 compliant)
* On-Chip 3.3V USB voltage regulator and transceivers with software power-down
* 5 USB endpoints: 1 control endpoint 2 IN endpoints supporting interrupt and bulk 2 OUT endpoints supporting interrupt and bulk
* Ha
