ST72651, ST7265x Datasheet - STMicroelectronics

ST72651, ST7265x, FULL-SPEED USB 8-BIT MCU

ST7265x www.DataSheet4U.com LOW-POWER, FULL-SPEED USB 8-BIT MCU WITH 32K FLASH, 5K RAM, FLASH CARD I/F, TIMER, PWM, ADC, I2C, SPI DATASHEET s Memorie

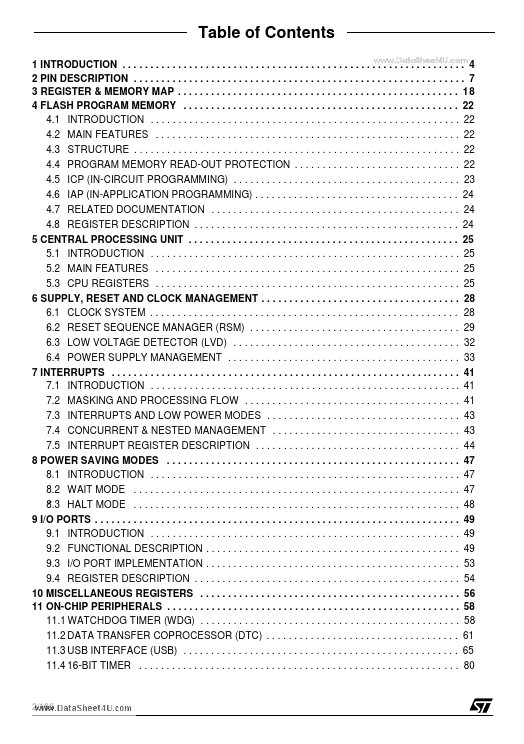

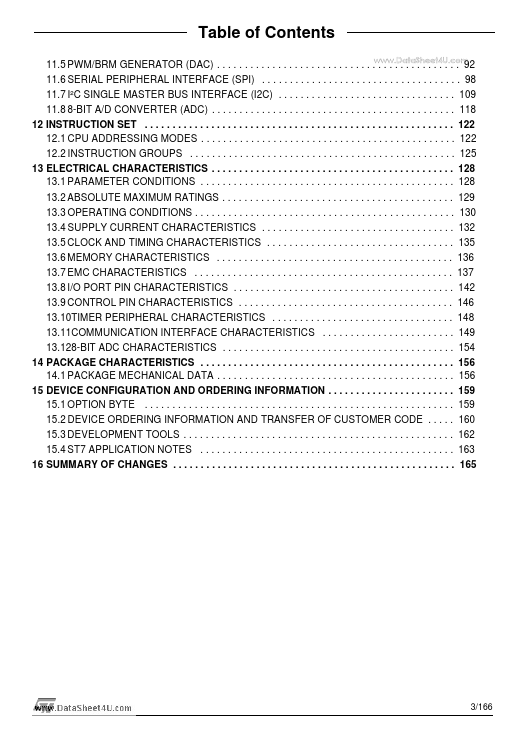

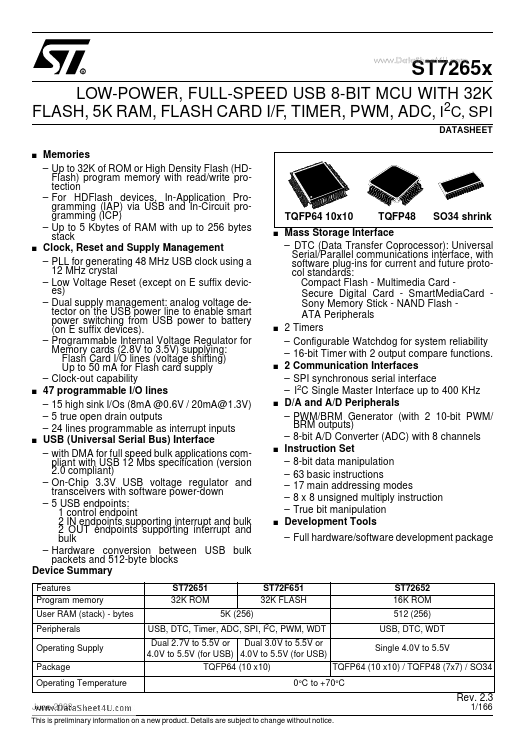

Datasheet Preview Page 1 ST72651 Datasheet Preview Page 2 Datasheet Preview Page 3

Features

* Program memory User RAM (stack) - bytes Peripherals Operating Supply Package ST72651 ST72F651 ST72652 32K ROM 32K FLASH 16K ROM 5K (256) 512 (256) USB, DTC, Timer, ADC, SPI, I2C, PWM, WDT USB, DTC, WDT Dual 2.7V to 5.5V or Dual 3.0V to 5.5V or 4.0V to 5.5V (for USB) 4.0V to 5.5V (for USB)

Applications

* compliant with USB 12 Mbs specification (version 2.0 compliant)
* On-Chip 3.3V USB voltage regulator and transceivers with software power-down
* 5 USB endpoints: 1 control endpoint 2 IN endpoints supporting interrupt and bulk 2 OUT endpoints supporting interrupt and bulk
* Ha

ST7265x_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ST72651, ST7265x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ST72651, ST7265x

Manufacturer:

STMicroelectronics ↗

File Size:

1.65 MB

Description:

Full-speed usb 8-bit mcu.

Note:

This datasheet PDF includes multiple part numbers: ST72651, ST7265x.
Please refer to the document for exact specifications by model.
