SCT040W65G3-4AG 650V 30A Automotive-grade silicon carbide Power MOSFET

STMicroelectronics

SCT040W65G3-4AG Description

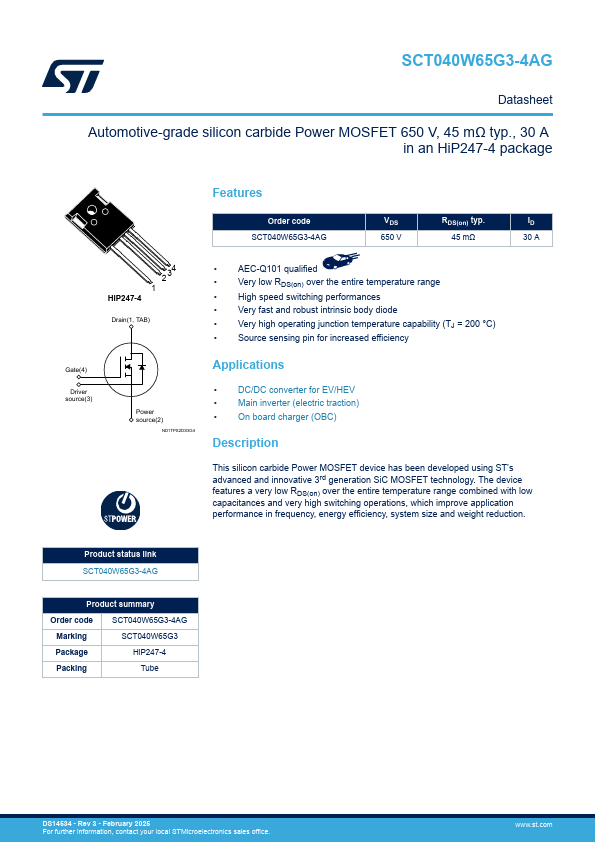

SCT040W65G3-4AG Datasheet Automotive-grade silicon carbide Power MOSFET 650 V, 45 mΩ typ., 30 A in an HiP247-4 package .
This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

SCT040W65G3-4AG Features

* Order code SCT040W65G3-4AG VDS 650 V RDS(on) typ. 45 mΩ ID 30 A HiP247-4 2 34 1 Drain(1, TAB)
* AEC-Q101 qualified
* Very low RDS(on) over the entire temperature range
* High speed switching performances
* Very fast and robust intrinsic body diode

SCT040W65G3-4AG Applications

* Power source(2) ND1TPS2DS3G4
* DC/DC converter for EV/HEV
* Main inverter (electric traction)

📥 Download Datasheet

SCT040W65G3-4AG Datasheet Preview — Preview of SCT040W65G3-4AG PDF

Datasheet Details

Part number: SCT040W65G3-4AG
Manufacturer: STMicroelectronics ↗
File Size: 194.16 KB
Datasheet: SCT040W65G3-4AG-STMicroelectronics.pdf
Description: 650V 30A Automotive-grade silicon carbide Power MOSFET
