LSM6DSO32X - iNEMO 6 DoF inertial module

STMicroelectronics

The LSM6DSO32X by STMicroelectronics is a iNEMO 6 DoF inertial module. Below is the official datasheet preview.

📥 Download Datasheet

LSM6DSO32X iNEMO 6 DoF inertial module by STMicroelectronics - Datasheet Preview — Official preview page of the **LSM6DSO32X** iNEMO 6 DoF inertial module datasheet (STMicroelectronics).

Datasheet Details

Part number	LSM6DSO32X
Manufacturer	STMicroelectronics
File Size	2.94 MB
Description	iNEMO 6 DoF inertial module
Datasheet	LSM6DSO32X-STMicroelectronics.pdf

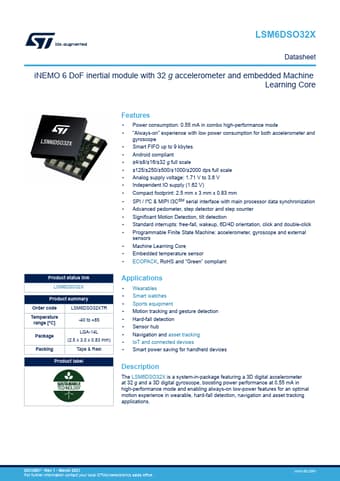

Additional preview pages of the LSM6DSO32X datasheet.

LSM6DSO32X Product details

Description

The LSM6DSO32X is a system-in-package featuring a 3D digital accelerometer at 32 g and a 3D digital gyroscope, boosting power performance at 0.55 mA in high-performance mode and enabling always-on low-power

Features

Power consumption: 0.55 mA in combo high-performance mode.
“Always-on" experience with low power consumption for both accelerometer and gyroscope.
Smart FIFO up to 9 kbytes.
Android compliant.
±4/±8/±16/±32 g full scale.
±125/±250/±500/±1000/±2000 dps full scale.
Analog supply voltage: 1.71 V to 3.6 V.
Independent IO supply (1.62 V).
Compact footprint: 2.5 mm x 3 mm x 0.83 mm.
SPI / I²C & MIPI I3CSM serial.
