LSM6DS33 - always-on 3D accelerometer and 3D gyroscope

Description

The LSM6DS33 is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 1.25 mA (up to 1.6 kHz ODR) in highperformance mode and enabling always-on low-power

Features

  • Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz.
  • “Always-on” experience with low power consumption for both accelerometer and gyroscope.
  • Smart FIFO up to 8 kbyte based on features set.
  • Compliant with Android K and L.
  • ±2/±4/±8/±16 g full scale.
  • ±125/±250/±500/±1000/±2000 dps full scale.
  • Analog supply voltage: 1.71 V to 3.6 V.
  • Independent IOs supply (1.62 V).
  • Compact footprint, 3 mm x 3 mm x 0.86.

📥 Download Datasheet

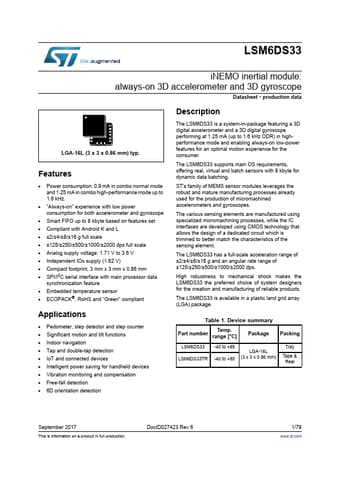

Datasheet preview – LSM6DS33

Datasheet Details

Part number LSM6DS33
Manufacturer STMicroelectronics
File Size 1.12 MB
Description always-on 3D accelerometer and 3D gyroscope
Datasheet download datasheet LSM6DS33 Datasheet
Additional preview pages of the LSM6DS33 datasheet.

📁 Similar Datasheet

  • LSM615 - Rectifier (Microsemi)
  • LSM670 - Mini TOPLED (Siemens)
  • LSM670 - Mini TOPLED (OSRAM)
  • LSM676 - Mini TOPLED (OSRAM)
  • LSM676 - Hyper Mini TOPLED Hyper-Bright LED (Siemens Semiconductor)
  • LSM67K - Hyper Mini TOPLED (Osram Opto Semiconductors)
  • LSM05B - ESD Protection Device (MCC)
  • LSM0603 - 0603 SMD LED Lamp (VCC)
  • LSM115J - 1 Amp Ultra Low Forward Voltage Schottky Diode (Microsemi Corporation)
  • LSM140 - 1 Amp Schottky Rectifier (Microsemi Corporation)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
LSM6DS33 iNEMO inertial module: always-on 3D accelerometer and 3D gyroscope Datasheet - production data LGA-16L (3 x 3 x 0.86 mm) typ. Features  Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz.  “Always-on” experience with low power consumption for both accelerometer and gyroscope  Smart FIFO up to 8 kbyte based on features set  Compliant with Android K and L  ±2/±4/±8/±16 g full scale  ±125/±250/±500/±1000/±2000 dps full scale  Analog supply voltage: 1.71 V to 3.6 V  Independent IOs supply (1.62 V)  Compact footprint, 3 mm x 3 mm x 0.
