LSM6DS3TR-C - always-on 3D accelerometer and 3D gyroscope

Name: LSM6DS3TR-C
SKU: LSM6DS3TR-C-1505981

STMicroelectronics

📥 Download Datasheet

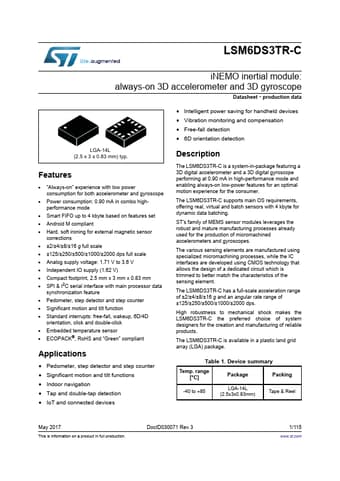

LSM6DS3TR-C Datasheet Preview — Preview of LSM6DS3TR-C PDF

Datasheet Details

Part number	LSM6DS3TR-C
Manufacturer	STMicroelectronics
File Size	1.75 MB
Description	always-on 3D accelerometer and 3D gyroscope
Datasheet	LSM6DS3TR-C-STMicroelectronics.pdf

LSM6DS3TR-C Product details

Description

The LSM6DS3TR-C is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 0.90 mA in high-performance mode and enabling always-on low-power

Features

“Always-on” experience with low power consumption for both accelerometer and gyroscope.
Power consumption: 0.90 mA in combo highperformance mode.
Smart FIFO up to 4 kbyte based on features set.
Android M compliant.
Hard, soft ironing for external magnetic sensor corrections.
±2/±4/±8/±16 g full scale.
±125/±250/±500/±1000/±2000 dps full scale.
Analog supply voltage: 1.71 V to 3.6 V.
Independent IO supply (1.62 V).
Compact footprint, 2.5 mm x 3 m.
