LIS2DH12 - MEMS digital output motion sensor

STMicroelectronics

The LIS2DH12 by STMicroelectronics is a MEMS digital output motion sensor. Below is the official datasheet preview.

📥 Download Datasheet

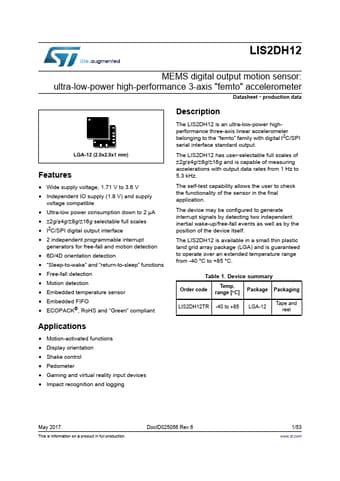

LIS2DH12 MEMS digital output motion sensor by STMicroelectronics - Datasheet Preview — Official preview page of the **LIS2DH12** MEMS digital output motion sensor datasheet (STMicroelectronics).

Datasheet Details

Part number	LIS2DH12
Manufacturer	STMicroelectronics
File Size	1.09 MB
Description	MEMS digital output motion sensor
Datasheet	LIS2DH12-STMicroelectronics.pdf
Additional preview pages of the LIS2DH12 datasheet.

LIS2DH12 Product details

Description

The LIS2DH12 is an ultra-low-power highperformance three-axis linear accelerometer belonging to the “femto” family with digital I2C/SPI serial interface standard output.

Features

Wide supply voltage, 1.71 V to 3.6 V.
Independent IO supply (1.8 V) and supply voltage compatible.
Ultra-low power consumption down to 2 μA.
2g/±4g/8g/16g selectable full scales.
I2C/SPI digital output interface.
2 independent programmable interrupt generators for free-fall and motion detection.
6D/4D orientation detection.
“Sleep-to-wake” and “return-to-sleep” functions.
Free-fall detection.
Motion detection.
Embedded temperature sensor.
