LIS2DH - MEMS digital output motion sensor

STMicroelectronics

The LIS2DH by STMicroelectronics is a MEMS digital output motion sensor. Below is the official datasheet preview.

📥 Download Datasheet

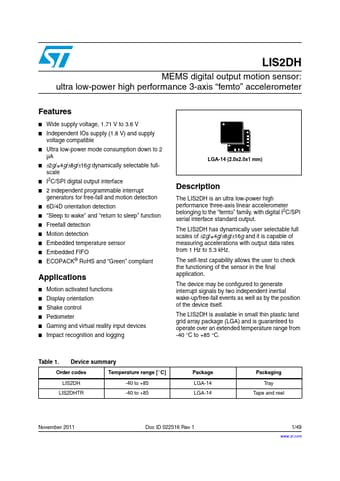

LIS2DH MEMS digital output motion sensor by STMicroelectronics - Datasheet Preview — Official preview page of the **LIS2DH** MEMS digital output motion sensor datasheet (STMicroelectronics).

Datasheet Details

Part number	LIS2DH
Manufacturer	STMicroelectronics
File Size	615.12 KB
Description	MEMS digital output motion sensor
Datasheet	LIS2DH-STMicroelectronics.pdf
Additional preview pages of the LIS2DH datasheet.

LIS2DH Product details

Description

The LIS2DH is an ultra low-power high performance three-axis linear accelerometer belonging to the “femto” family, with digital I2C/SPI serial interface standard output.

Features

Wide supply voltage, 1.71 V to 3.6 V.
Independent IOs supply (1.8 V) and supply voltage compatible.
Ultra low-power mode consumption down to 2 µA.
±2g/±4g/±8g/±16g dynamically selectable full- scale.
I2C/SPI digital output interface.
2 independent programmable interrupt generators for free-fall and motion detection.
6D/4D orientation detection.
“Sleep to wake” and “return to sleep” function.
Freefall detection.
Motion detection.
Embedded te.
