IPS2050H - high-side switch

Name: IPS2050H
SKU: IPS2050H-1505966

STMicroelectronics

📥 Download Datasheet

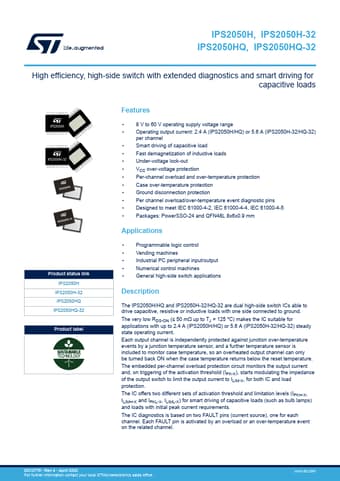

IPS2050H Datasheet Preview — Preview of IPS2050H PDF

Datasheet Details

Part number	IPS2050H
Manufacturer	STMicroelectronics
File Size	2.02 MB
Description	high-side switch
Datasheet	IPS2050H-STMicroelectronics.pdf

IPS2050H Product details

Description

The IPS2050H/HQ and IPS2050H-32/HQ-32 are dual high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to ground.

Features

8 V to 60 V operating supply voltage range.
Operating output current: 2.4 A (IPS2050H/HQ) or 5.6 A (IPS2050H-32/HQ-32) per channel.
Smart driving of capacitive load.
Fast demagnetization of inductive loads.
Under-voltage lock-out.
VCC over-voltage protection.
Per-channel overload and over-temperature protection.
Case over-temperature protection.
Ground disconnection protection.
Per channel overl.
