IPS21, IPS20 - Low-Voltage Current Sensing Precision Feedback Controllers

Name: IPS21
SKU: IPS21-1584358

📥 Download Datasheet

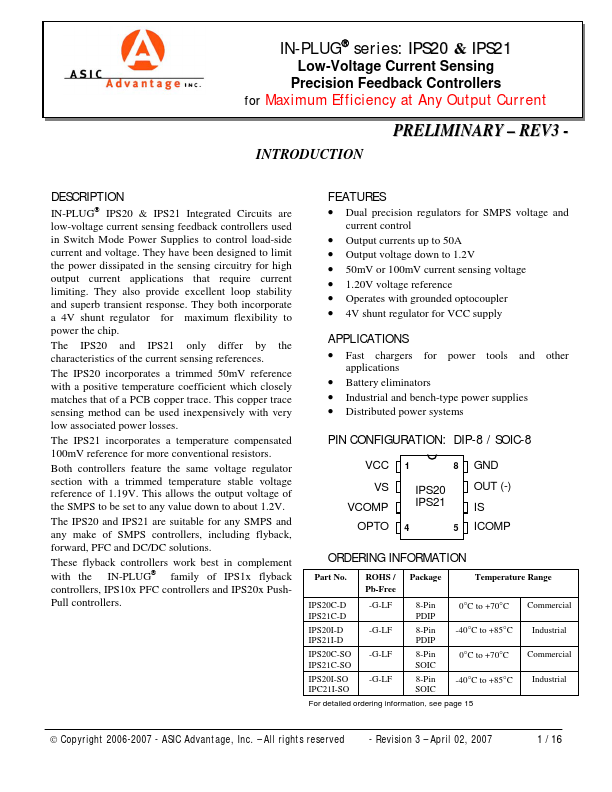

IPS21 Datasheet Preview — This datasheet PDF includes multiple part numbers: IPS21, IPS20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IPS21, IPS20
Manufacturer	ASIC Advantage
File Size	154.67 KB
Description	Low-Voltage Current Sensing Precision Feedback Controllers
Datasheet	IPS20-ASIC.pdf
Note	This datasheet PDF includes multiple part numbers: IPS21, IPS20. Please refer to the document for exact specifications by model.

IPS21 Product details

Description

IN-PLUG® IPS20 & IPS21 Integrated Circuits are low-voltage current sensing feedback controllers used in Switch Mode Power Supplies to control load-side current and voltage.

Features

Dual precision regulators for SMPS voltage and current control.
Output currents up to 50A.
Output voltage down to 1.2V.
50mV or 100mV current sensing voltage.
1.20V voltage reference.
Operates with grounded optocoupler.
4V shunt regulator for VCC supply.
