ECMF02-4CMX8 Common mode filter

ECMF02-4CMX8 Description

ECMF02-4CMX8 Datasheet Common mode filter with ESD protection for USB 2.0 interface Product status link ECMF02-4CMX8 .
The ECMF02-4CMX8 affords key component integration such as common mode filter D+ and D- lines and ESD protection on all lines.

ECMF02-4CMX8 Features

* Integrated common mode filter
* Differential pair ESD protection
* 16 V VBUS ESD and EOS protection
* ID pin ESD protection
* Low profile micro QFN-8L package
* High bandwidth: > 6 GHz
* Optimized for high speed USB 2.0
* Hig

ECMF02-4CMX8 Applications

* Where transient overvoltage protection in ESD sensitive equipment is required, such as:
* Computers
* Printers
* Communication systems
* Cellular phone handsets and accessories

📥 Download Datasheet

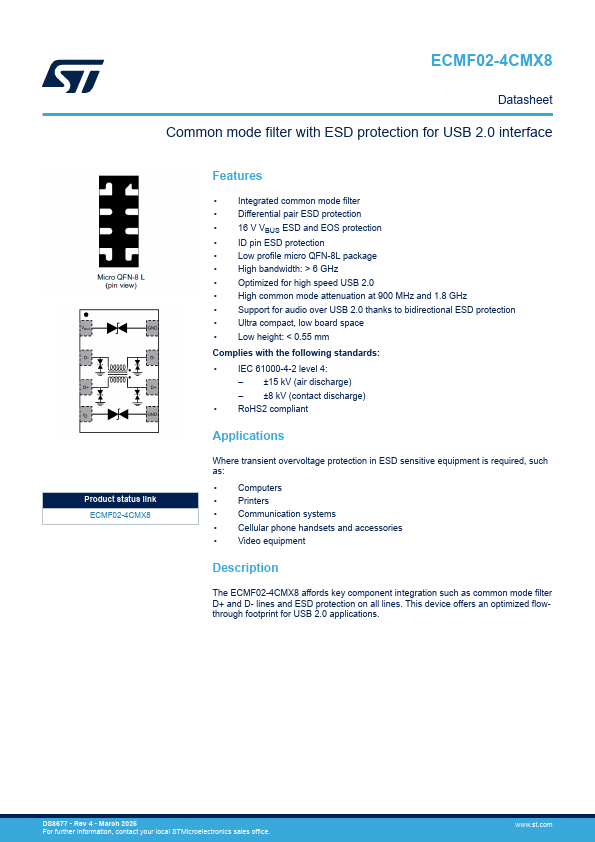

Preview of ECMF02-4CMX8 PDF

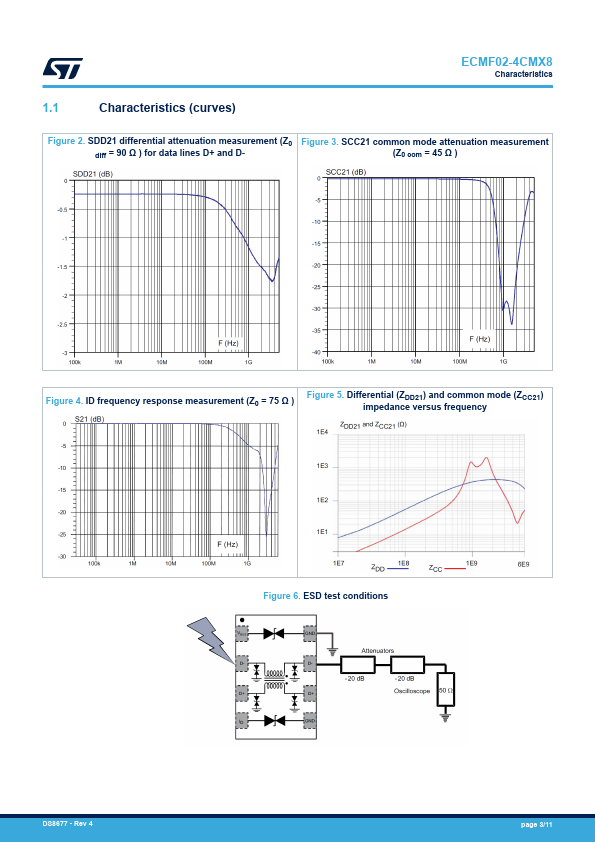

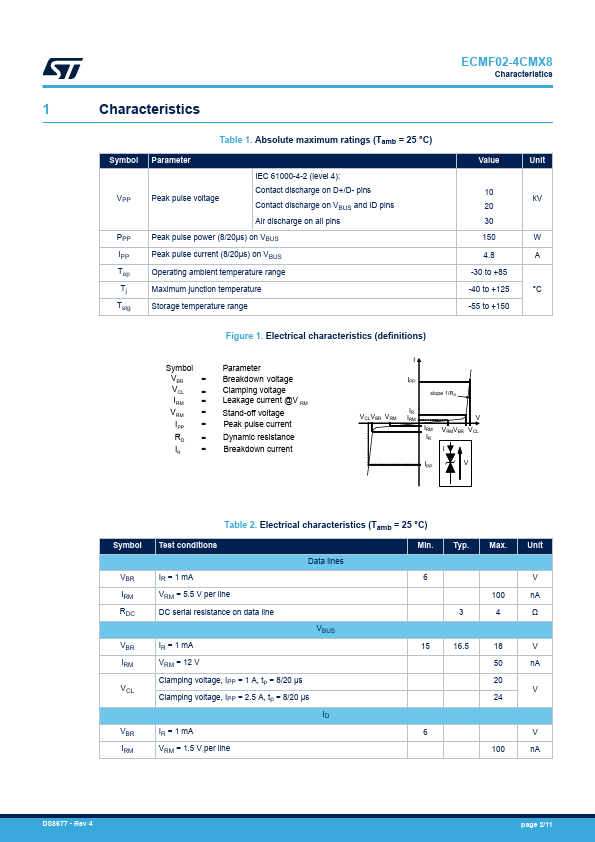

datasheet Preview Page 2 datasheet Preview Page 3
