ECMF4-2450A60N10 - filter

Description

The ECMF4-2450A60N10 is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like HDMI 2.1, HDMI 2.0, HDMI1.4, USB 4, USB 3.2 Gen 1 and Gen 2, ethernet, MIPI, display port and other high speed serial interfaces.

Features

  • 6.4 GHz differential bandwidth to comply with HDMI 2.1, HDMI 2.0, HDMI 1.4, USB 4, USB 3.2 Gen 1 and Gen 2, MIPI, display port, etc.
  • High common mode attenuation on WLAN frequencies :.
  • From - 30 dB to - 33 dB at 2.4.
  • 2.47 GHz: Wi-Fi CH1-14 frequencies.
  • From - 20 dB to - 15 dB at 5.18.
  • 5.82 GHz: Wi-Fi CH36-165 frequencies.
  • Very low PCB space consumption.
  • Thin package: 0.5 mm max.
  • Lead free and RoHS package.

📥 Download Datasheet

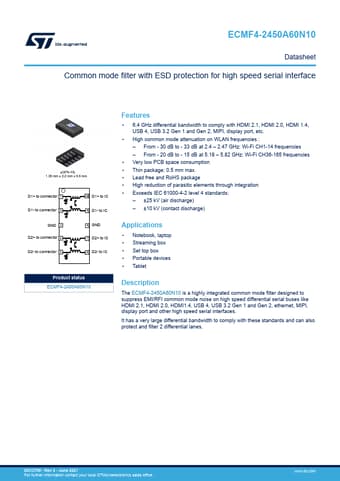

Datasheet preview – ECMF4-2450A60N10

📁 Similar Datasheet

  • ECMF02-2AMX6 - EMI FILTER (ST Microelectronics)
  • ECMF04-4AMX12 - EMI FILTER (ST Microelectronics)
  • ECM-10 - ELECTRET CONDENSER MICROPHONE UNIT (ETC)
  • ECM-A0557 - LCD Display (EPSON)
  • ECM-A1172 - LCD (Seiko)
  • ECM-KA - AMD G-Series SoC Platform 3.5inch Micro Module Quick Installation Guide Manual (ETC)
  • ECM-QM77 - Intel Ivy Bridge Processors 3.5inch Micro Module Quick Installation Guide Manual (ETC)
  • ECM168 - PHS +34 dBm 10V Module (TriQuint)
  • ECM5000 - Surface Mount & Mortice Electromagnets (nolimal)
  • ECM5000M - Surface Mount & Mortice Electromagnets (nolimal)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
ECMF4-2450A60N10 Datasheet Common mode filter with ESD protection for high speed serial interface D1+ to connector 1 D1- to connector 2 GND 3 D2+ to connector 4 D2- to connector 5 10 D1+ to IC 9 D1- to IC 8 GND 7 D2+ to IC 6 D2- to IC Product status ECMF4-2450A60N10 Features • 6.4 GHz differential bandwidth to comply with HDMI 2.1, HDMI 2.0, HDMI 1.4, USB 4, USB 3.2 Gen 1 and Gen 2, MIPI, display port, etc. • High common mode attenuation on WLAN frequencies : – From - 30 dB to - 33 dB at 2.4 – 2.47 GHz: Wi-Fi CH1-14 frequencies – From - 20 dB to - 15 dB at 5.18 – 5.82 GHz: Wi-Fi CH36-165 frequencies • Very low PCB space consumption • Thin package: 0.5 mm max.
