B100NF04L STB100NF04L

B100NF04L Description

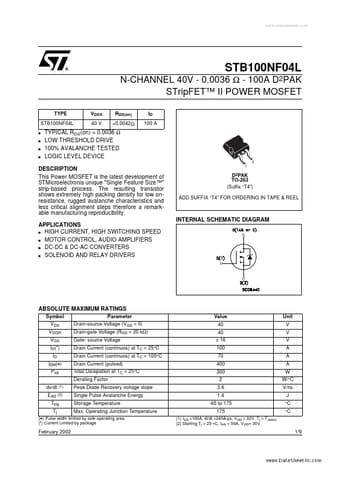

www.DataSheet4U.com N-CHANNEL 40V - 0.0036 Ω - 100A D2PAK STripFET™ II POWER MOSFET TYPE STB100NF04L s s s s STB100NF04L VDSS 40 V RDS(on) <0.0042.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

B100NF04L Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s SOLENOID AND RELAY DRIVERS D2PAK TO-263 (Suffix “T4”) ADD SUFFIX “T4” FOR ORDERING IN TAPE & REEL INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID IDM(
* )
