AIS2120SX, AIS1120SX MEMS automotive acceleration sensor

STMicroelectronics

Description

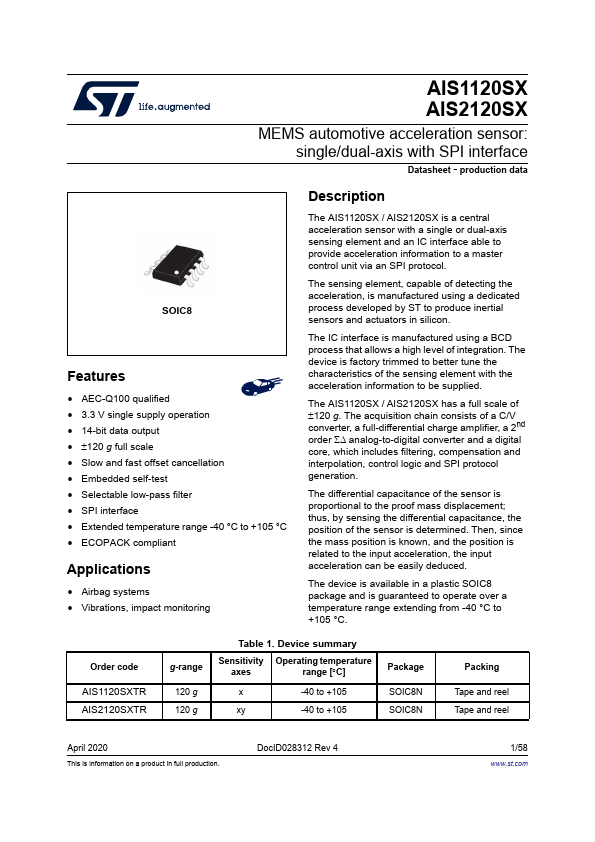

AIS1120SX AIS2120SX MEMS automotive acceleration sensor: single/dual-axis with SPI interface Datasheet - production data SOIC8 .
The AIS1120SX / AIS2120SX is a central acceleration sensor with a single or dual-axis sensing element and an IC interface able to provide acceleration.

📥 Download Datasheet

AIS2120SX Datasheet Preview — This datasheet PDF includes multiple part numbers: AIS2120SX, AIS1120SX. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AIS2120SX, AIS1120SX
Manufacturer: STMicroelectronics ↗
File Size: 1.55 MB
Datasheet: AIS1120SX-STMicroelectronics.pdf
Description: MEMS automotive acceleration sensor
Note: This datasheet PDF includes multiple part numbers: AIS2120SX, AIS1120SX.
Please refer to the document for exact specifications by model.

Features

* AEC-Q100 qualified
* 3.3 V single supply operation
* 14-bit data output
* 120 g full scale
* Slow and fast offset cancellation
* Embedded self-test
* Selectable low-pass filter
* SPI interface
* Extended temperature range -40 °C to +105 °C
* ECOPACK complia

Applications

* Airbag systems
