11N60M6 - N-channel Power MOSFET

STMicroelectronics

The 11N60M6 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

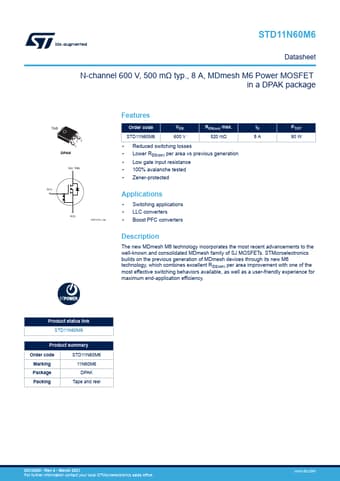

11N60M6 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the 11N60M6 N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	11N60M6
Manufacturer	STMicroelectronics
File Size	358.12 KB
Description	N-channel Power MOSFET
Datasheet	11N60M6-STMicroelectronics.pdf
Additional preview pages of the 11N60M6 datasheet.

11N60M6 Product details

Description

The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs.

Features

Order code VDS RDS(on) max. ID STD11N60M6 600 V 520 mΩ 8A.
Reduced switching losses.
Lower RDS(on) per area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected PTOT 90 W.
