GD75FFY120C6S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

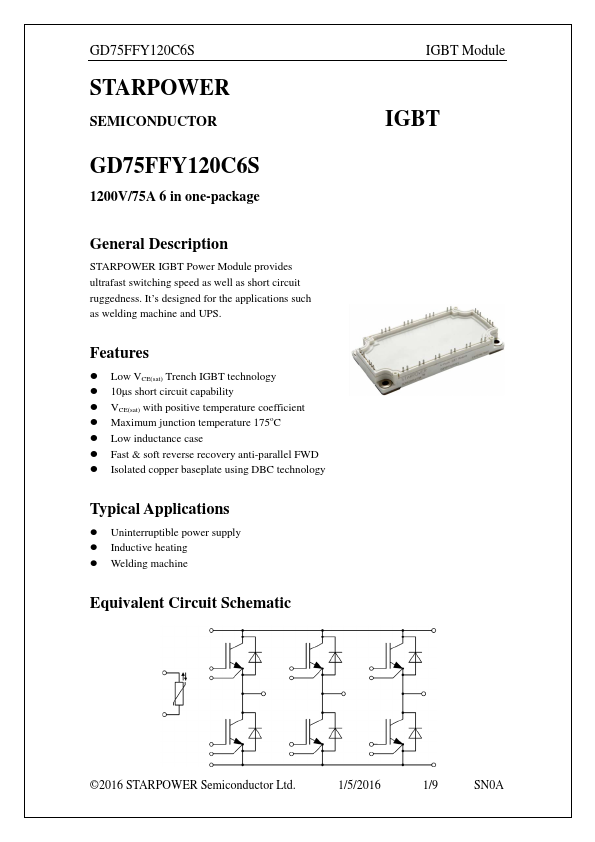

GD75FFY120C6S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD75FFY120C6S

Datasheet Details

Part number	GD75FFY120C6S
Manufacturer	STARPOWER
File Size	220.28 KB
Description	IGBT
Datasheet	GD75FFY120C6S Datasheet

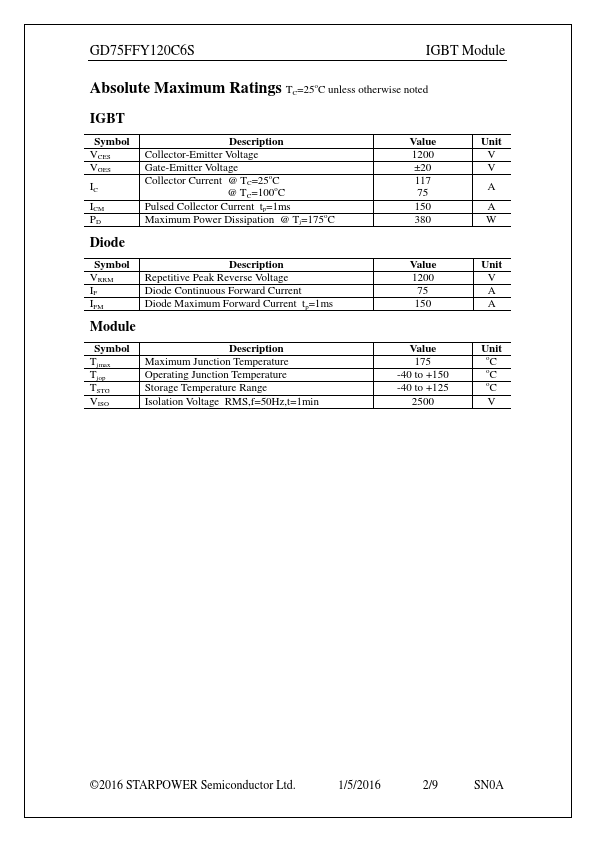

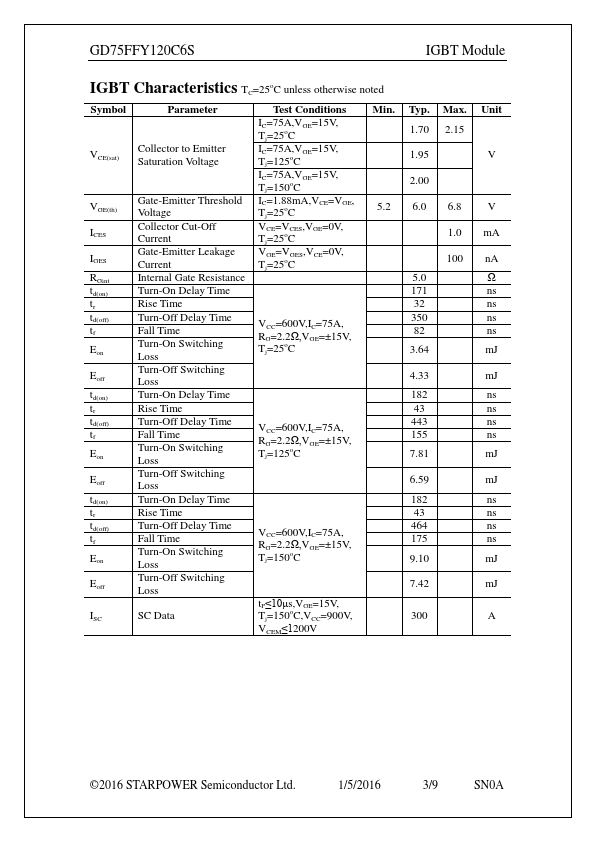

Additional preview pages of the GD75FFY120C6S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
