GD75FFX170C6S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

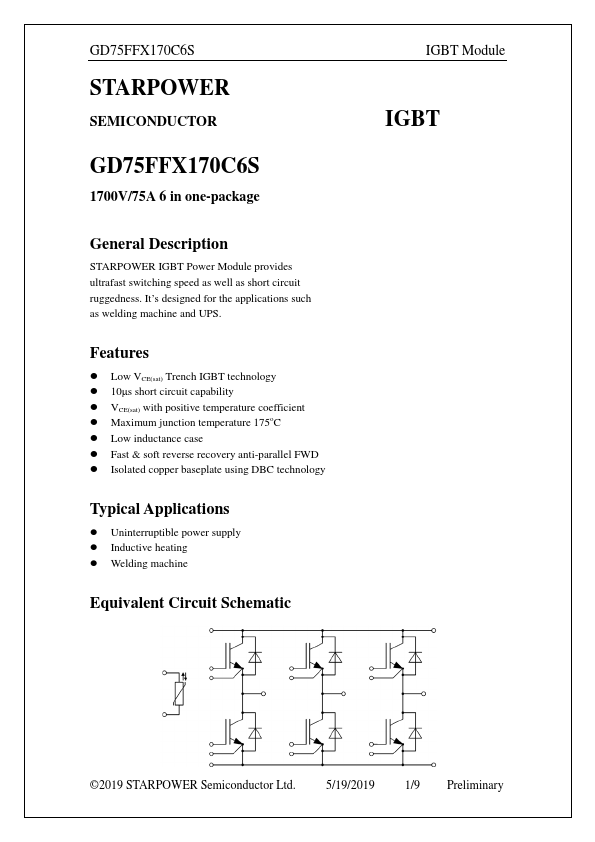

GD75FFX170C6S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD75FFX170C6S

Datasheet Details

Part number	GD75FFX170C6S
Manufacturer	STARPOWER
File Size	205.02 KB
Description	IGBT
Datasheet	GD75FFX170C6S Datasheet

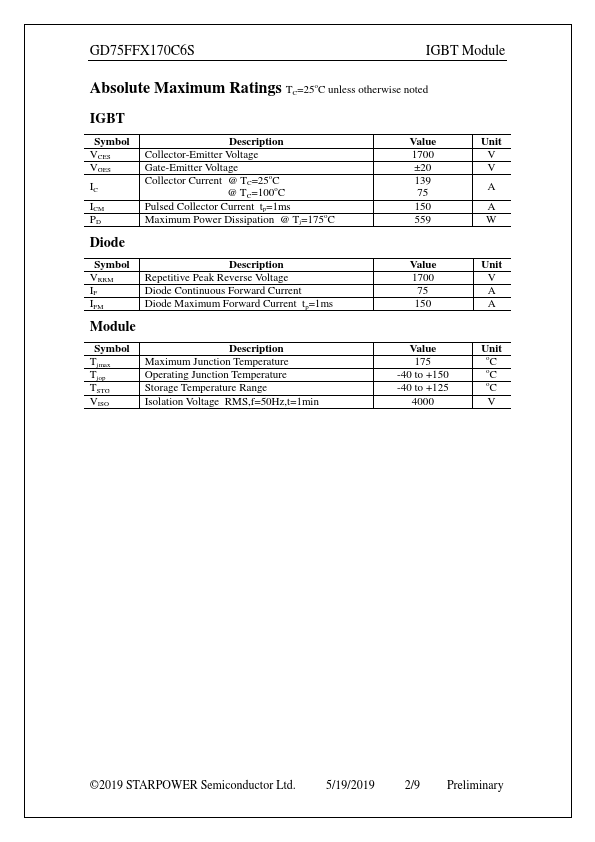

Additional preview pages of the GD75FFX170C6S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
