GD15PJY120F4S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

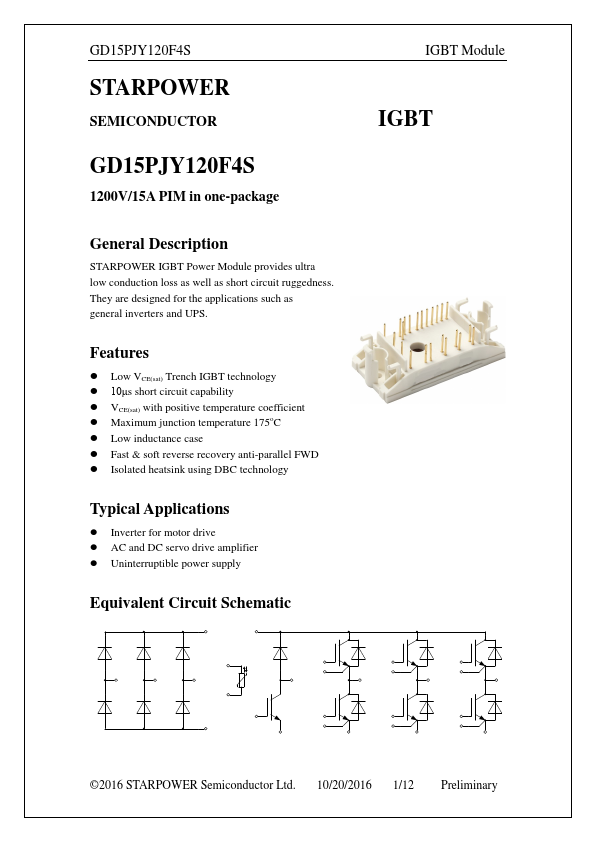

GD15PJY120F4S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD15PJY120F4S

Datasheet Details

Part number	GD15PJY120F4S
Manufacturer	STARPOWER
File Size	286.98 KB
Description	IGBT
Datasheet	GD15PJY120F4S Datasheet

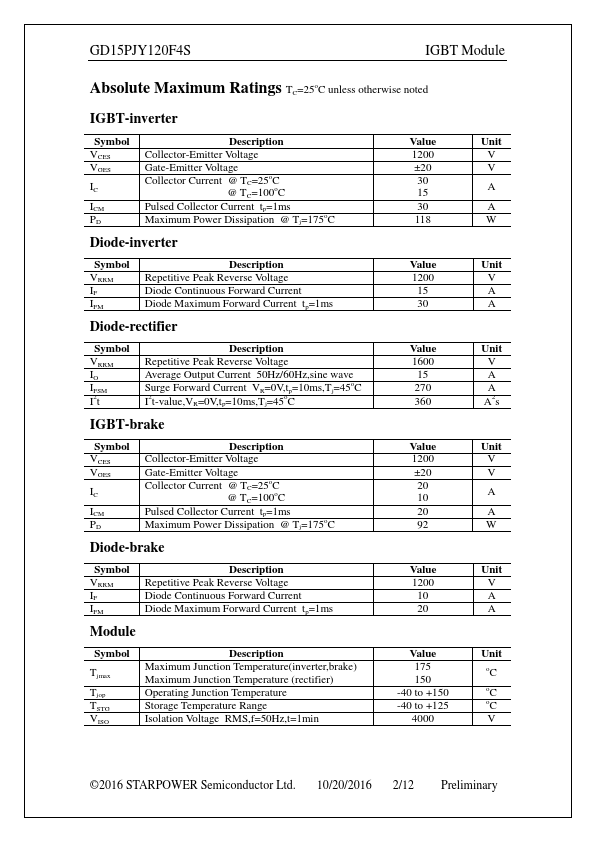

Additional preview pages of the GD15PJY120F4S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
