GD15PJK120L1S - IGBT

Name: GD15PJK120L1S
SKU: GD15PJK120L1S-1580193

STARPOWER

📥 Download Datasheet

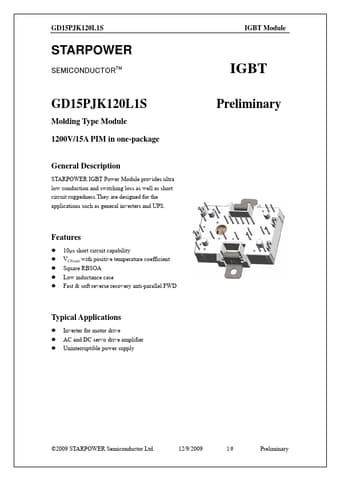

GD15PJK120L1S Datasheet Preview — Preview of GD15PJK120L1S PDF

Datasheet Details

Part number	GD15PJK120L1S
Manufacturer	STARPOWER
File Size	288.75 KB
Description	IGBT
Datasheet	GD15PJK120L1S-STARPOWER.pdf

GD15PJK120L1S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness.They are designed for the applications such as general inverters and UPS.

Features

z 10μs short circuit capability z VCE(sat) with positive temperature coefficient z Square RBSOA z Low inductance case z Fast & soft reverse recovery anti-parallel FWD Typical.
