GD1400HFY120P2S - IGBT

STARPOWER

The GD1400HFY120P2S by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

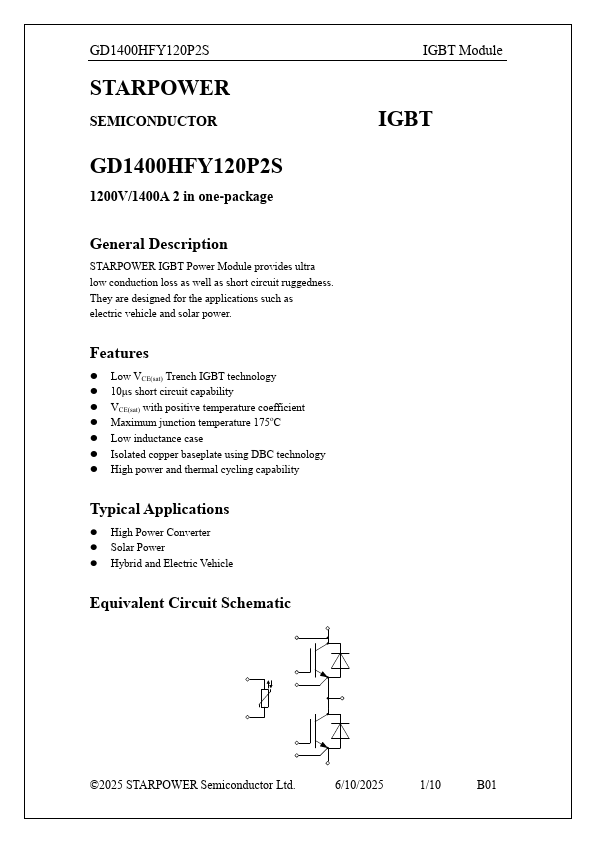

GD1400HFY120P2S IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD1400HFY120P2S IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD1400HFY120P2S
Manufacturer	STARPOWER
File Size	330.17 KB
Description	IGBT
Datasheet	GD1400HFY120P2S-STARPOWER.pdf

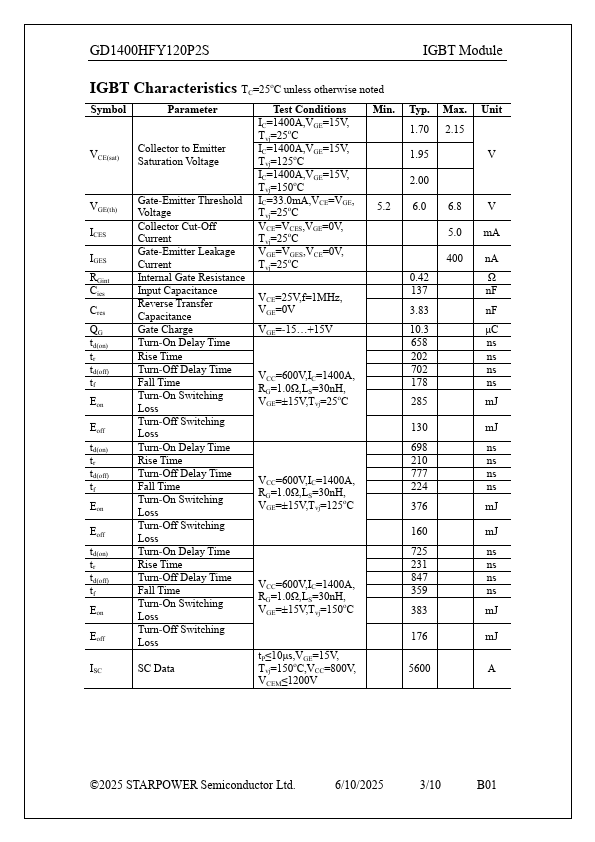

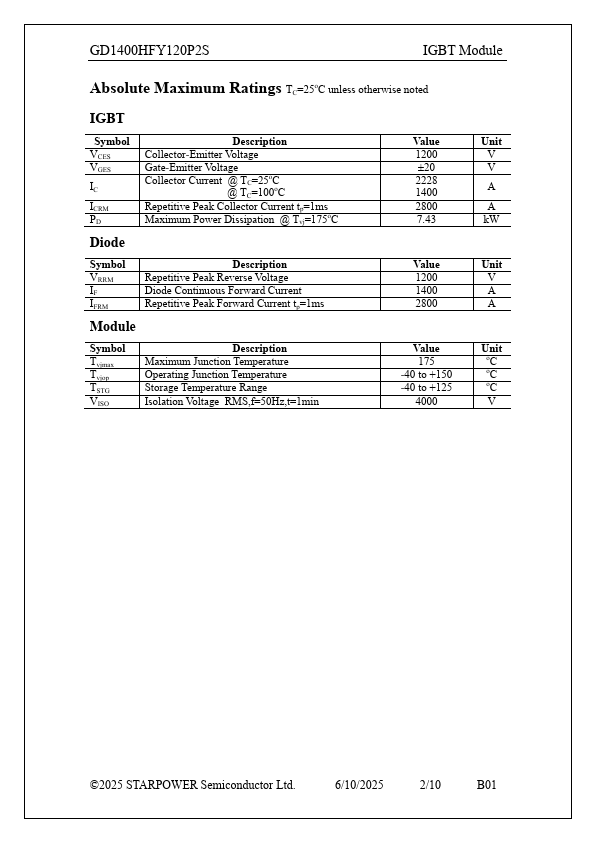

Additional preview pages of the GD1400HFY120P2S datasheet.

GD1400HFY120P2S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Isolated copper baseplate using DBC technology.
High power and thermal cycling capability Typical.
