UR1104B - Single Color Ultra High Brightness Type

Name: UR1104B
SKU: UR1104B-608558

STANLEY ELECTRIC

The UR1104B by STANLEY ELECTRIC is a Single Color Ultra High Brightness Type. Below is the official datasheet preview.

Datasheet Details

Part number	UR1104B
Manufacturer	STANLEY ELECTRIC
File Size	313.95 KB
Description	Single Color Ultra High Brightness Type
Datasheet	UR1104B_STANLEYELECTRIC.pdf

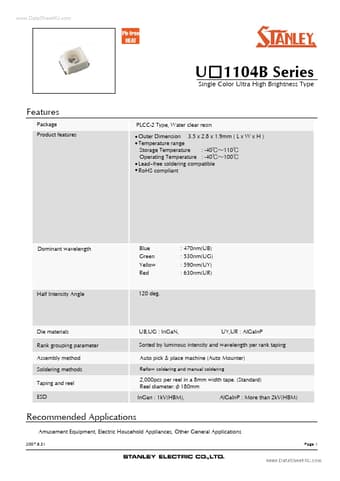

Additional preview pages of the UR1104B datasheet.

Package Product features PLCC-2 Type, Water clear resin Outer Dimension 3.5 x 2.8 x 1.9mm ( L x W x H ) Temperature range Storage Temperature : -40℃～110℃ Operating Temperature : -40℃～100℃ Lead.
free soldering compatible RoHS compliant Single Color Ultra High Brightness Type Dominant wavelength Blue Green Yellow Red : 470nm(UB) : 530nm(UG) : 590nm(UY) : 630nm(UR) Half Intensity Angle 120 deg. Die materials Rank grouping parameter Assembly method Soldering methods Taping and reel ESD.
