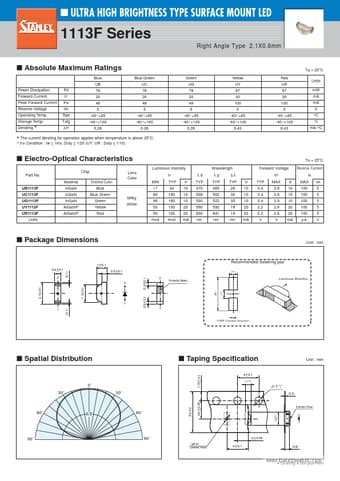

■ ULTRA HIGH BRIGHTNESS TYPE SURFACE MOUNT LED
1113F Series
Right Angle Type 2.1X0.6mm
■ Absolute Maximum Ratings
Blue UB Power Dissipation Forward Current Peak Forward Current Reverse Voltage Operating Temp. Storage Temp. Derating * Pd IF IFM VR Topr Tstg ∆IF 78 20 48 5 -40~+85 -40~+100 0.28 Blue Green UC 78 20 48 5 -40~+85 -40~+100 0.28 Green UG 78 20 48 5 -40~+85 -40~+100 0.28 Yellow UY 87 30 100 5 -40~+85 -40~+100 0.43 Red UR 87 30 100 5 -40~+85 -40~+100 0.43
Ta = 25°C Units mW mA mA V °C °C mA / °C
* The current derating for operation applies when temperature is above 25°C.
• IFM Condition : tw ≤ _ 1ms, Duty ≤ _ 1/20 (UY, UR : Duty ≤ _ 1/10)
■ Electro-Optical Characteristics
Part No.
