STW220NF75, N-CHANNEL POWER MOSFET

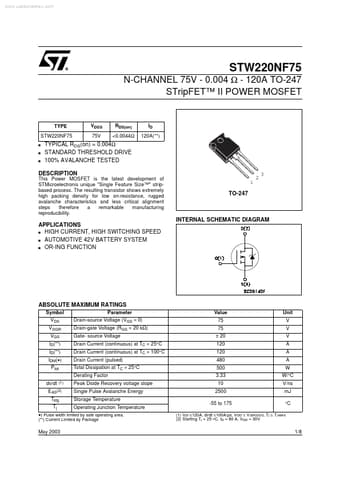

www.DataSheet4U.com N-CHANNEL 75V - 0.004 Ω - 120A TO-247 STripFET™ II POWER MOSFET STW220NF75 TYPE STW220NF75 s s s VDSS 75V RDS(on) <0.0044Ω I.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" stripbased process.

STW220NF75_STMicroelectronics.pdf

STW220NF75 Datasheet Preview — Preview of STW220NF75 PDF

Datasheet Details

Part number:

STW220NF75

Manufacturer:

STMicroelectronics ↗

File Size:

239.14 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s AUTOMOTIVE 42V BATTERY SYSTEM s OR-ING FUNCTION INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID(
* ) IDM(
* ) Ptot dv/dt (1) EAS(2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS
