STW20NA50, N-CHANNEL Power MOSFET

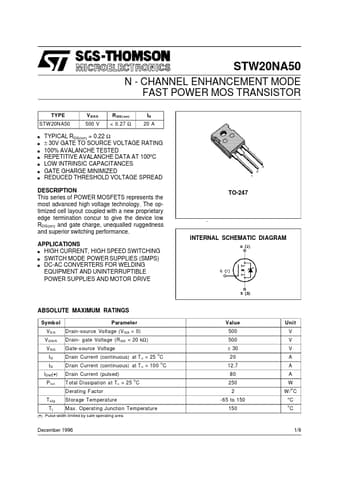

STW20NA50 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STW20NA50 s s s s s s s V DSS 500 V R DS( on) < 0.27 Ω ID 20 A TYPICAL RDS(o.
This series of POWER MOSFETS represents the most advanced high voltage technology.

STW20NA50_STMicroelectronics.PDF

STW20NA50 Datasheet Preview — Preview of STW20NA50 PDF

Datasheet Details

Part number:

STW20NA50

Manufacturer:

STMicroelectronics ↗

File Size:

148.97 KB

Description:

N-CHANNEL Power MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VD S V DG R V GS ID ID ID M(
* ) P tot T stg Tj Parameter Drain-sou
