STV6889 - HIGH-END IC CONTROLLED DEFLECTION PROCESSOR

ST Microelectronics

The STV6889 by ST Microelectronics is a HIGH-END IC CONTROLLED DEFLECTION PROCESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	STV6889
Manufacturer	STMicroelectronics
File Size	1.35 MB
Description	HIGH-END IC CONTROLLED DEFLECTION PROCESSOR
Datasheet	STV6889_STMicroelectronics.pdf

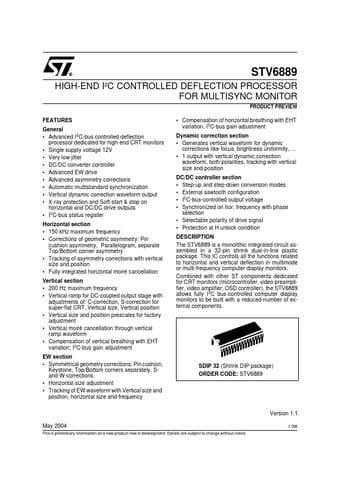

Additional preview pages of the STV6889 datasheet.

The STV6889 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package.

General.
Advanced I2C-bus controlled deflection processor dedicated for high-end CRT monitors.
Single supply voltage 12V.
Very low jitter.
DC/DC converter controller.
Advanced EW drive.
Advanced asymmetry corrections.
Automatic multistandard synchronization.
Vertical dynamic correction waveform output.
X-ray protection and Soft-start & stop on horizontal and DC/DC drive outputs.
I2C-bus status register Hori.
