STV5730A, MULTISTANDARD ON-SCREEN DISPLAY FOR VCR

STV5730A MULTISTANDARD ON-SCREEN DISPLAY FOR VCR, PAY-TV, SATELLITE RECEIVER * * *...A CHARACTER GENERATOR WITH ASCII RAM A.
The STV5730A IC is intended to be used in VCR, Satellite receiver and PAY-TV systems for CVBS or R/G/B text/graphics insertion.

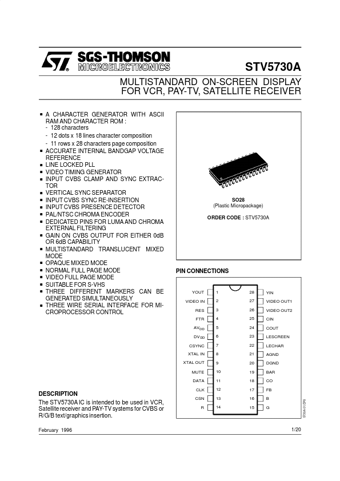

STV5730A_STMicroelectronics.pdf

STV5730A Datasheet Preview — Preview of STV5730A PDF

Datasheet Details

Part number:

STV5730A

Manufacturer:

STMicroelectronics ↗

File Size:

236.58 KB

Description:

MULTISTANDARD ON-SCREEN DISPLAY FOR VCR

Applications

* VIDEO IN Analog Input This is the CVBS input. An external capacitor is needed for clamp operation. The STV5730A extracts the sync from this signal when the C7 control bit is set. RES Analog Pin it must be tied to an external resistor to control the PLL f0 frequency. FTR Analog Pin it must be tied t
