STV5730, MULTISTANDARD ON-SCREEN DISPLAY FOR VCR

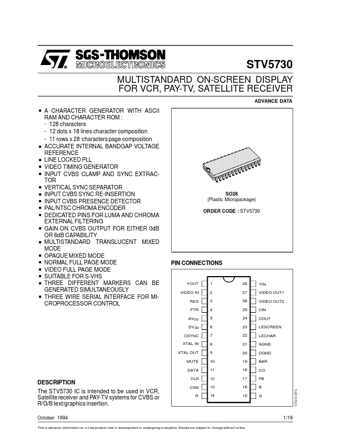

STV5730 MULTISTANDARD ON-SCREEN DISPLAY FOR VCR, PAY-TV, SATELLITE RECEIVER * * *...ADVANCE DATA A CHARACTER GENERATOR WIT.
The STV5730 IC is intended to be used in VCR, Satellite receiver and PAY-TV systems for CVBS or R/G/B text/graphics insertion.

STV5730_STMicroelectronics.pdf

STV5730 Datasheet Preview — Preview of STV5730 PDF

Datasheet Details

Part number:

STV5730

Manufacturer:

STMicroelectronics ↗

File Size:

332.58 KB

Description:

MULTISTANDARD ON-SCREEN DISPLAY FOR VCR

Applications

* VIDEO IN Analog Input This is the CVBS input. An external capacitor is needed for clamp operation. The STV5730 extracts the sync from this signal when the C7 control bit is set. RES Analog Pin it must be tied to an external resistor to control the PLL f0 frequency. FTR Analog Pin it must be tied to
