STU10NC70Z, N-Channel MOSFET

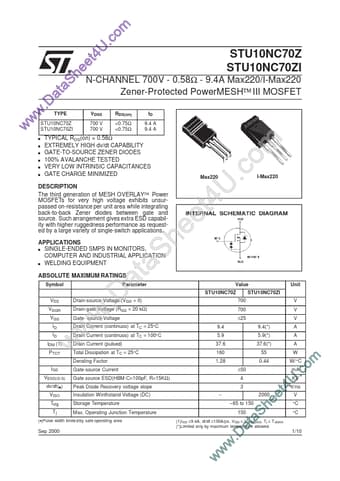

w w a D .w S a t e e h U 4 t m o .c STU10NC70Z STU10NC70ZI N-CHANNEL 700V - 0.58Ω - 9.4A Max220/I-Max220 Zener-Protected PowerMESH™ III MOSFET.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-b.

STU10NC70Z_STMicroelectronics.pdf

STU10NC70Z Datasheet Preview — Preview of STU10NC70Z PDF

Datasheet Details

Part number:

STU10NC70Z

Manufacturer:

STMicroelectronics ↗

File Size:

142.96 KB

Description:

N-Channel MOSFET

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the 25V Zener vo

Applications

* APPLICATIONS SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (1) PTOT IGS VESD(G-S) dv/dt(q) VISO Tstg Tj Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Cu
