STU14NA50 - N-Channel Enhancement Mode Fast Power MOS Transistor

Description

The Max220 TM package is a new high volume power package exibiting the same footprint as the industry standard TO-220, but designed to accomodate much larger silicon chips, normally supplied in bigger packages.

📥 Download Datasheet

Datasheet preview – STU14NA50

Datasheet Details

Part number STU14NA50
Manufacturer STMicroelectronics
File Size 80.22 KB
Description N-Channel Enhancement Mode Fast Power MOS Transistor
Datasheet download datasheet STU14NA50 Datasheet

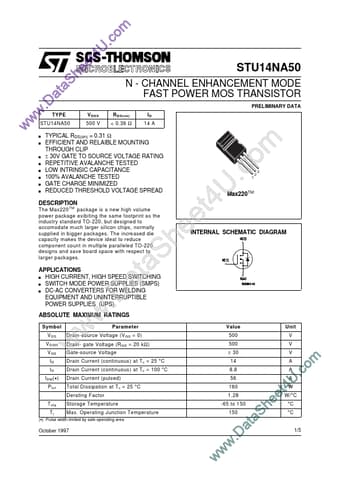

Additional preview pages of the STU14NA50 datasheet.
