STP9NB60, STP-9NB Datasheet - ST Microelectronics

STP9NB60, STP-9NB, PowerMesh MOSFET

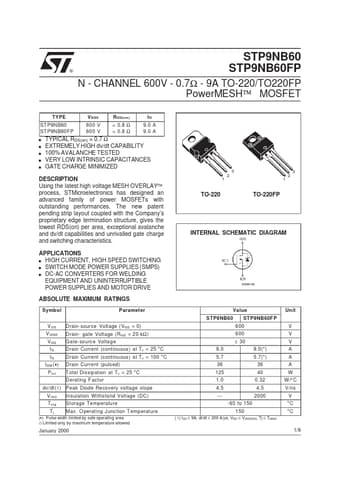

® STP9NB60 STP9NB60FP N - CHANNEL 600V - 0.7Ω - 9A TO-220/TO220FP PowerMESH™ MOSFET TYPE ST P9NB60 ST P9NB60FP s s s s s V DSS 600 V 600 V R DS(on.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STP-9NB-60.pdf

STP9NB60 Datasheet Preview — This datasheet PDF includes multiple part numbers: STP9NB60, STP-9NB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP9NB60, STP-9NB

Manufacturer:

STMicroelectronics ↗

File Size:

108.95 KB

Description:

PowerMesh MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP9NB60, STP-9NB.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot Parameter Drain-source Voltage (VGS = 0) Drain- gate Vol
