STP9NB50, PowerMesh MOSFET

N-CHANNEL 500V - 0.75 Ω - 8.6 A TO-220/TO-220FP PowerMesh™ MOSFET TYPE STP9NB50 STP9NB50FP s s s s s STP9NB50 STP9NB50FP VDSS 500 V 500 V RDS(on) <.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

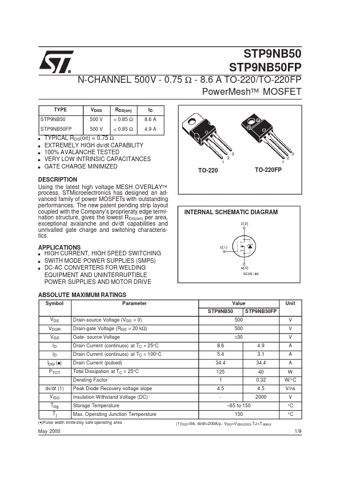

STP9NB50_STMicroelectronics.pdf

STP9NB50 Datasheet Preview — Preview of STP9NB50 PDF

Datasheet Details

Part number:

STP9NB50

Manufacturer:

STMicroelectronics ↗

File Size:

108.42 KB

Description:

PowerMesh MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-ga
